VSA Modulator-Control Unit Removal and Installation: Installation

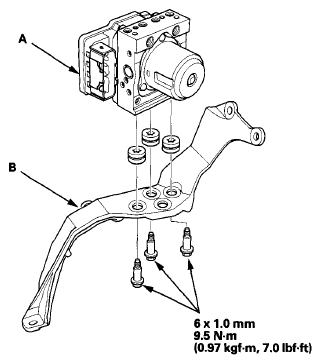

  1. Install the VSA modulator-control unit (A) onto the bracket (B).
    Fig 1: Installing VSA Modulator-Control Unit Onto Bracket With Torque Specifications
    G07363349Courtesy of AMERICAN HONDA MOTOR CO., INC.

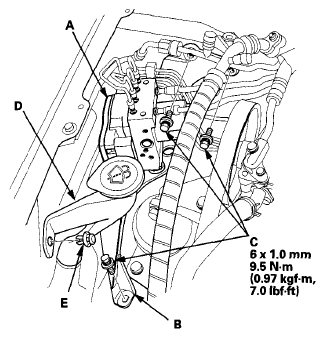

  2. Install the VSA modulator-control unit (A) with the bracket (B) to the body, then install the flange bolts (C).
    Fig 2: Installing VSA Modulator-Control Unit With Bracket With Torque Specifications
    G07363350Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the upper portion of the washer reservoir (D), then install the clip (E).
  4. Install the power steering fluid reservoir bracket (A) on the body.
    Fig 3: Installing Power Steering Fluid Reservoir Bracket On Body With Torque Specifications
    G07363351Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the power steering fluid reservoir (B) on the power steering fluid reservoir bracket.

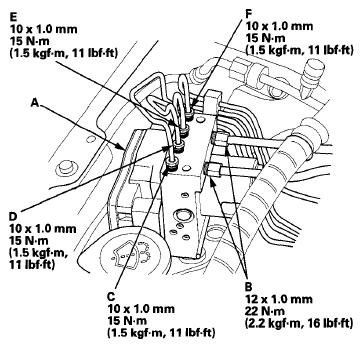

  6. Connect the 10 mm brake lines and the 12 mm brake lines to the VSA modulator-control unit (A).
    NOTE: Brake lines are connected to the master cylinder (B), the left-rear (C), the right-front (D), the left-front (E), and the right-rear (F) brake systems.
    Fig 4: Connecting Brake Lines And Brake Lines To VSA Modulator-Control Unit With Torque Specifications
    G07363352Courtesy of AMERICAN HONDA MOTOR CO., INC.

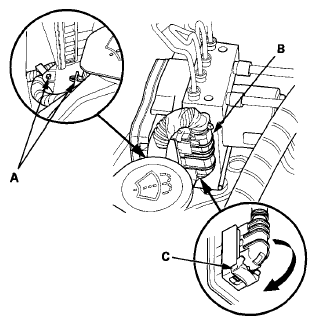

  7. Install the wire harness clips (A).
    Fig 5: Installing Wire Harness Clips
    G07363353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Align the connecting surface of the VSA modulator-control unit 36P connector (B) to the VSA modulator-control unit.
  9. Pull down the lever (C) of the VSA modulator-control unit 36P connector, then confirm the connector is fully seated.
  10. Install the A/C line mounting bolt (A).
    Fig 6: Installing A/C Line Mounting Bolt With Torque Specifications
    G07363354Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
  12. Install the right upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
  13. Do the VSA modulator-control unit update (see VSA MODULATOR-CONTROL UNIT UPDATE  ).
  14. Do the VSA sensor neutral position memorization procedure (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
  15. Start the engine, and make sure the ABS and the VSA indicators go off.
  16. Test-drive the vehicle, and make sure the ABS and the VSA indicators do not come on.
    NOTE: If the brake pedal is spongy, there may be air trapped in the modulator which could then be induced into the normal brake system during modulation. Bleed the brake system again (see BRAKE SYSTEM BLEEDING ).
