Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Remove the front wheel.
  3. Remove the clamps (A), then disconnect the wheel speed sensor connector (B).
    NOTE: Replace the clamp whenever the clamp is removed.

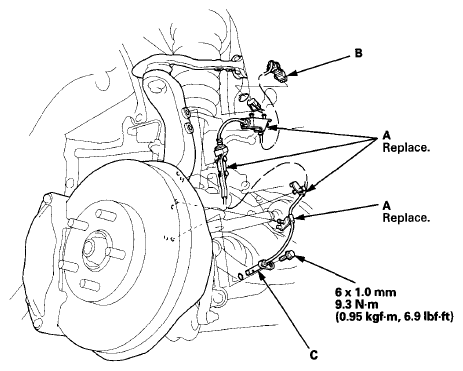

    Fig 1: Disconnecting Wheel Speed Sensor Connector With Torque Specifications
    G07363357Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolt and the wheel speed sensor (C).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
  6. Start the engine, and make sure the ABS and the VSA indicators go off.
  7. Test-drive the vehicle, and make sure the ABS and the VSA indicators do not come on.
