Rear Accessory Power Socket Test/Replacement
- Open the center console.

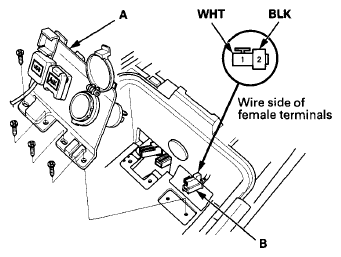

- Remove the screws and accessory trim (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Inspect the 2P connector (B) terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
- Turn the ignition switch to ACC (I), and measure the voltage between terminal No. 1 and body ground. There should be battery voltage.
- If there is battery voltage, go to step 5.
- If there is no battery voltage, check for:
- Blown No. 9 (20 A) or No. 32 (10 A) fuse in the driver's under-dash fuse/relay box.
- Faulty accessory power socket relay.
- Poor ground (G503, G601).
- An open or high resistance in the wire.
- Check for continuity between terminal No. 2 and body ground. There should be continuity.
- If there is continuity, go to step 6.
- If there is no continuity, check for:
- Poor ground (G503).
- An open or high resistance in the wire.
- Gently press the tabs (A) and remove the socket (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Gently depress the tabs (A), then remove the housing (B) from the panel. Note the location of the indexing tabs (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the parts in the reverse order of removal.
