Fuse-to-Components Index

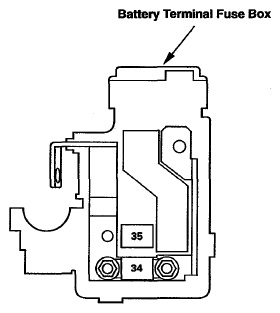

Fig 1: Battery Terminal Fuse Box (6-8)
G07748072
Fuse Number Fuse Name Amps See Component or Circuit Protected
34 RADIATOR FAN 50A 10 RFC Unit Relay in Auxiliary Under-hood Relay Box
35 - - 10 Not Used
