Drive Belt Replacement

Special Tools Required

Belt Tension Release Tool Snap-on YA9317* or equivalent

*Available through the Acura Tool and Equipment Program, 888-424-6857.

1. Remove the right upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
2. Remove the engine cover (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
3. Move the auto-tensioner (A) using the belt tension release tool (YA9317) in the direction shown to relieve tension from the drive belt, then remove the drive belt.

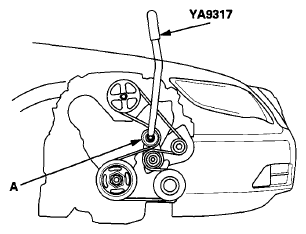

   Fig 1: Identifying Belt Tension Release Tool

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the new drive belt in the reverse order of removal.
