Starter Solenoid Test

  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  2. Remove the harness clamp (A), then disconnect the positive starter cable (B), the motor wire (C), and the 1P connector (D).

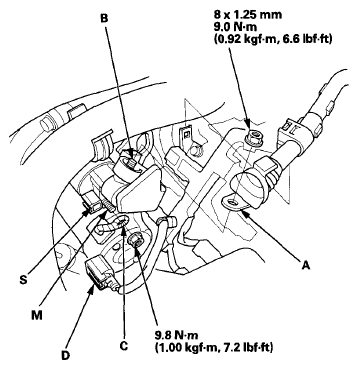

    Fig 1: Positive Starter Cable, Motor Wire And 1P Connector With Torque Specifications
    G07353440Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity.
    • If there is continuity, go to step 4.
    • If there is no continuity, replace the solenoid.
  4. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity.
    • If there is continuity, the solenoid is OK.
    • If there is no continuity, replace the solenoid.
  5. Install wire and the connector in the reverse order of removal.
  6. Do the battery terminal reconnection procedure (see RECONNECTION ).
