Exploded View

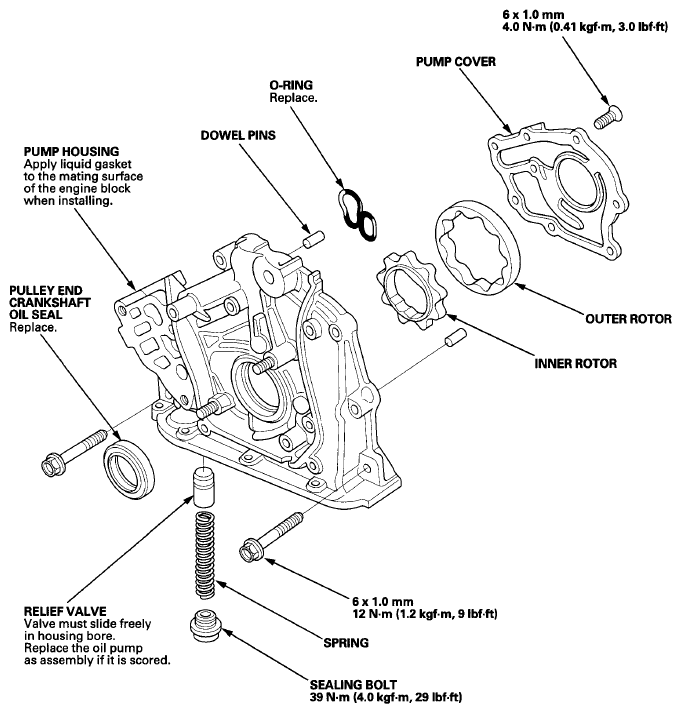

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil Seal Driver, 64 mm 070AD-RCAA100
• 2008 V6 Attachment Arm SIL02C000033*
• Engine Support Hanger, A and Reds AAR-T1256*
• Engine Hanger Balance Bar VSB02C000019*

*: Available through the Acura Tool and Equipment program, 888-424-6857.
