Home >> Acura >> 2012 >> RL >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Block >> Component Location Index

Component Location Index

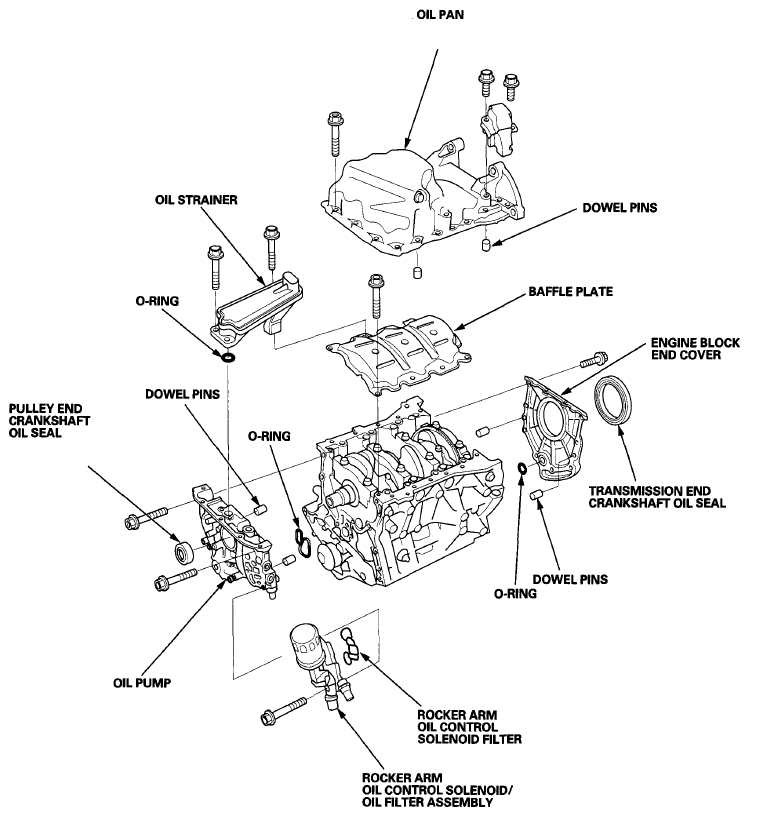

Fig 1: Exploded View Of Engine Block Components (1 Of 3)
G07361690Courtesy of AMERICAN HONDA MOTOR CO., INC.

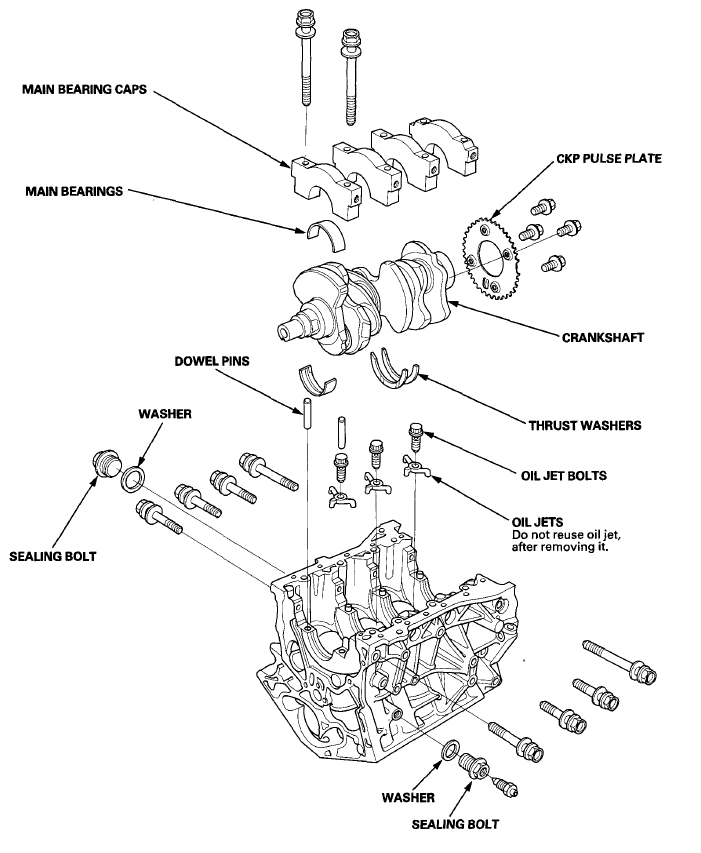

Fig 2: Exploded View Of Engine Block Components (2 Of 3)
G07361691Courtesy of AMERICAN HONDA MOTOR CO., INC.

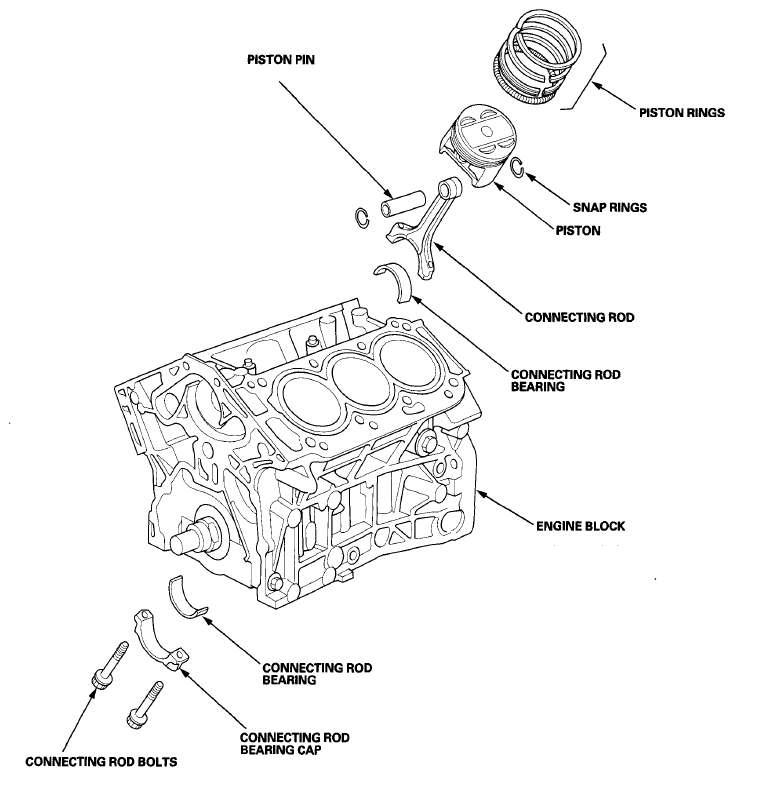

Fig 3: Exploded View Of Engine Block Components (3 Of 3)
G07361692Courtesy of AMERICAN HONDA MOTOR CO., INC.
