Component Location Index

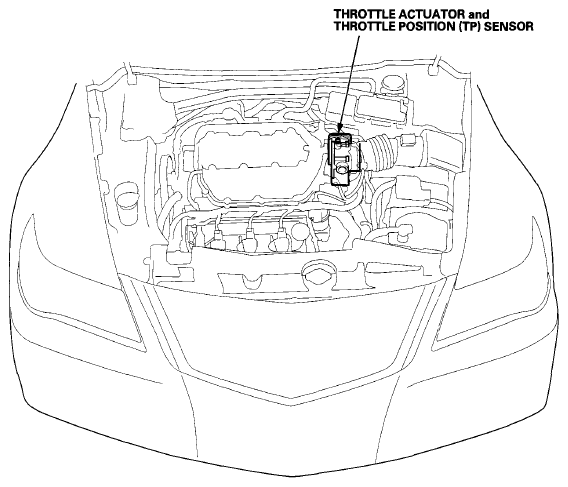

Fig 1: Identifying Throttle Actuator And Throttle Position (TP) Sensor
G07353779Courtesy of AMERICAN HONDA MOTOR CO., INC.

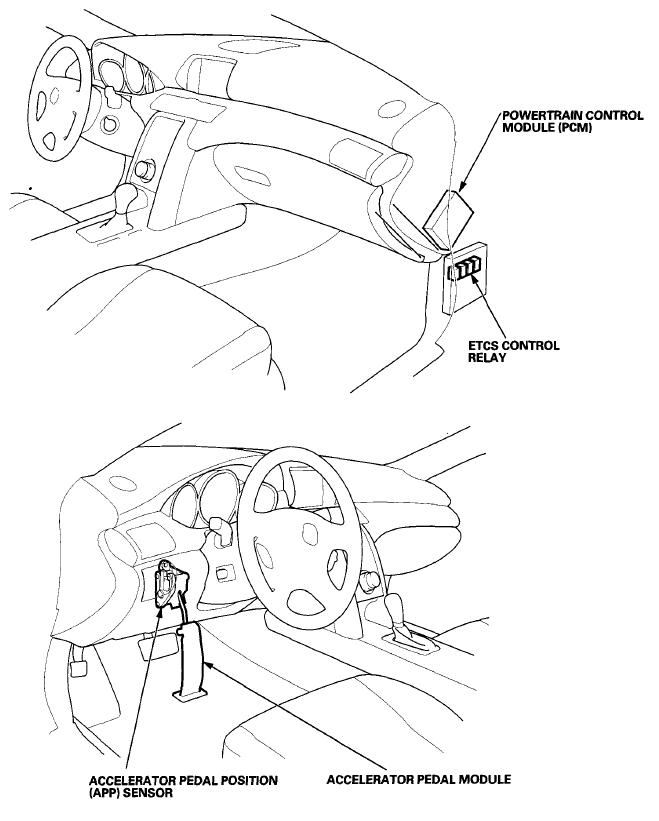

Fig 2: Identifying Electronic Throttle Control System Components
G07353780Courtesy of AMERICAN HONDA MOTOR CO., INC.
