EGR Pipe Removal and Installation: Installation

  1. Install the EGR pipe (A) with new gaskets (B).

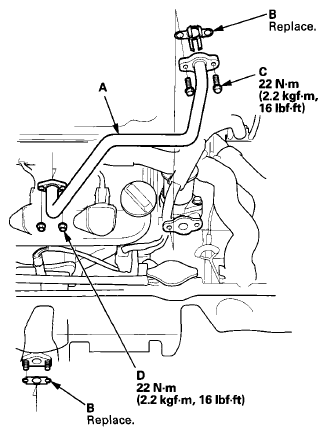

    Fig 1: Installing EGR Pipe With New Gaskets With Torque Specifications
    G07354035Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the mounting bolts (C) and nuts (D).
  3. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
