EVAP Canister Purge Valve Replacement

  1. Remove the engine cover (see step 2 on INTAKE MANIFOLD AND EXHAUST SYSTEM ).
  2. Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).

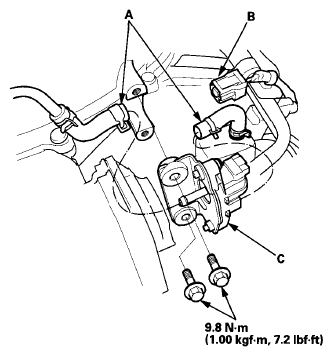

    Fig 1: Disconnecting Hoses And EVAP Canister Purge Valve 2P Connector With Torque Specifications
    G07362132Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EVAP canister purge valve and the bracket (C).
  4. Remove the EVAP canister purge valve (A) from the bracket (B).

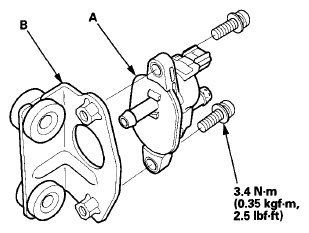

    Fig 2: Removing EVAP Canister Purge Valve From Bracket With Torque Specifications
    G07362133Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
