Rocker Arm Oil Control Solenoid Replacement

  1. Disconnect the rocker arm oil control solenoid connector (A).

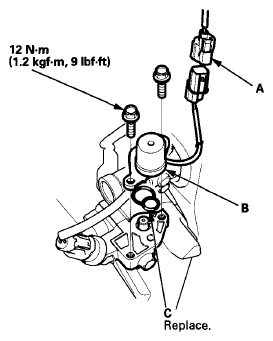

    Fig 1: Disconnecting Rocker Arm Oil Control Solenoid Connector With Torque Specifications
    G07353859Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rocker arm oil control solenoid (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
