Home >> Acura >> 2012 >> RL >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> System Description >> Electronic Control System >> PCM A/T Control System Electrical Connections

PCM A/T Control System Electrical Connections

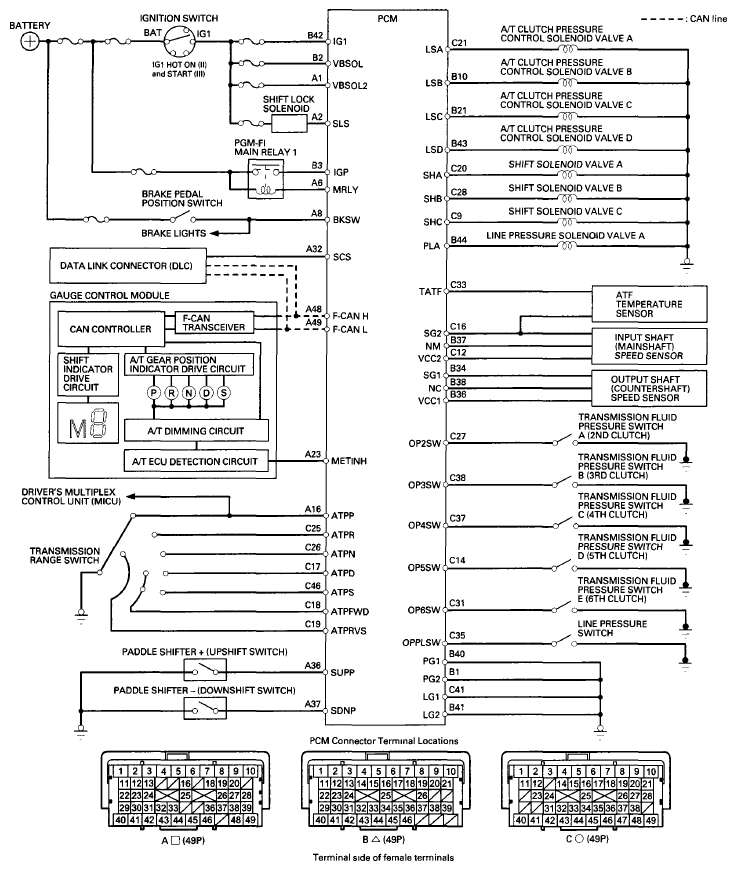

Fig 1: Identifying PCM A/T Control System Electrical Connections

G07362167

Courtesy of AMERICAN HONDA MOTOR CO., INC.
