Front Subframe Torque

If you remove the mounting bolts for any of the following items, always replace the bolts with new ones:

• Front subframe
• Front subframe middle rubber mount
• Front subframe front stiffener
• Front subframe rear stiffener
• Rear engine mounting base bracket

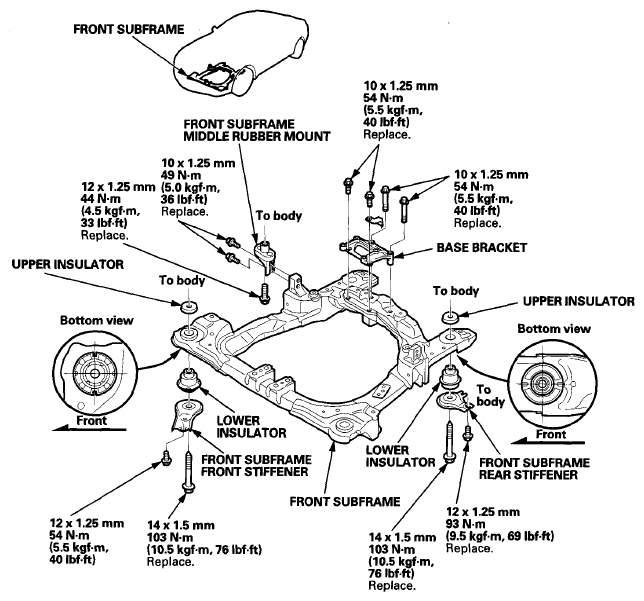

  Fig 1: Front Subframe And Related Components Location With Torque Specifications

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
