Power Mirror Switch Test/Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws from the driver's door grip (A) and grip cover (B).

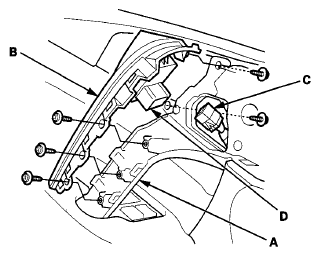

    Fig 1: Identifying Driver's Door Grip And Cover
    G08071601Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull out the grip cover slightly from the door grip, then disconnect the 13P connector (C) from the power mirror switch (D).
  4. Remove the two screws and the power mirror switch (A) from the grip trim (B).

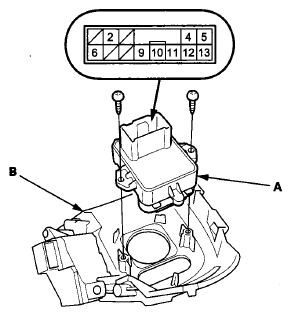

    Fig 2: Identifying Power Mirror Switch And Grip Trim With Connector End View
    G08071602Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Check for continuity between the terminals in each switch position according to the table.

    Power mirror switch

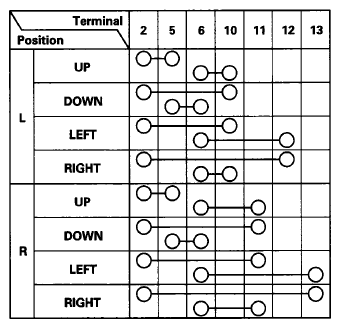

    Fig 3: Power Mirror Switch - Reference Chart
    G08071603Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, replace the power mirror switch.
  7. Install the switch in the reverse order of removal.
