Circuit Diagram

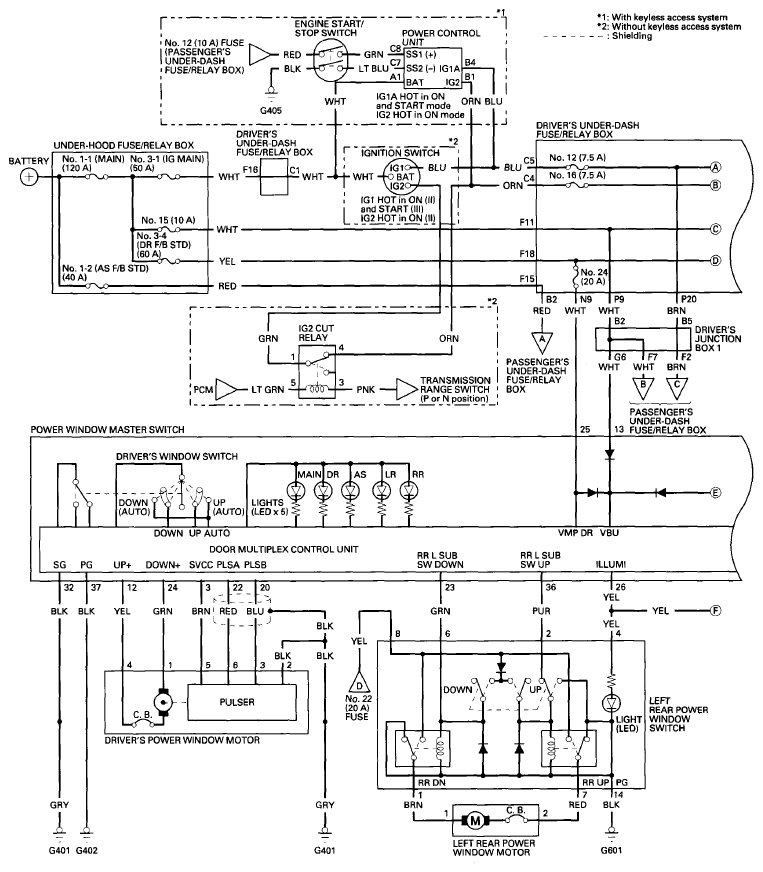

Fig 1: Power Window - Circuit Diagram (1 Of 3)

G08071450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

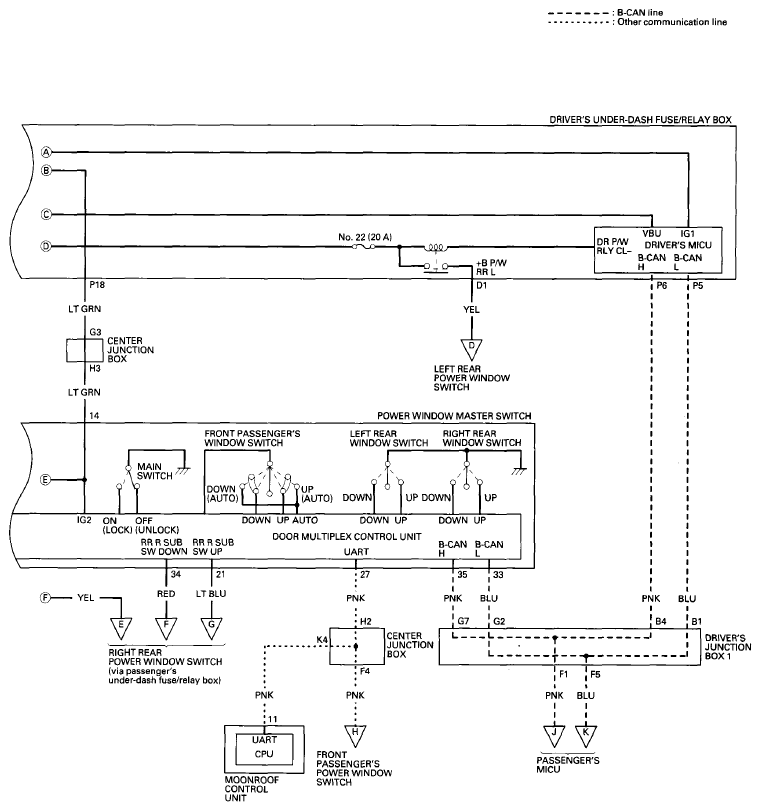

Fig 2: Power Window - Circuit Diagram (2 Of 3)

G08071451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

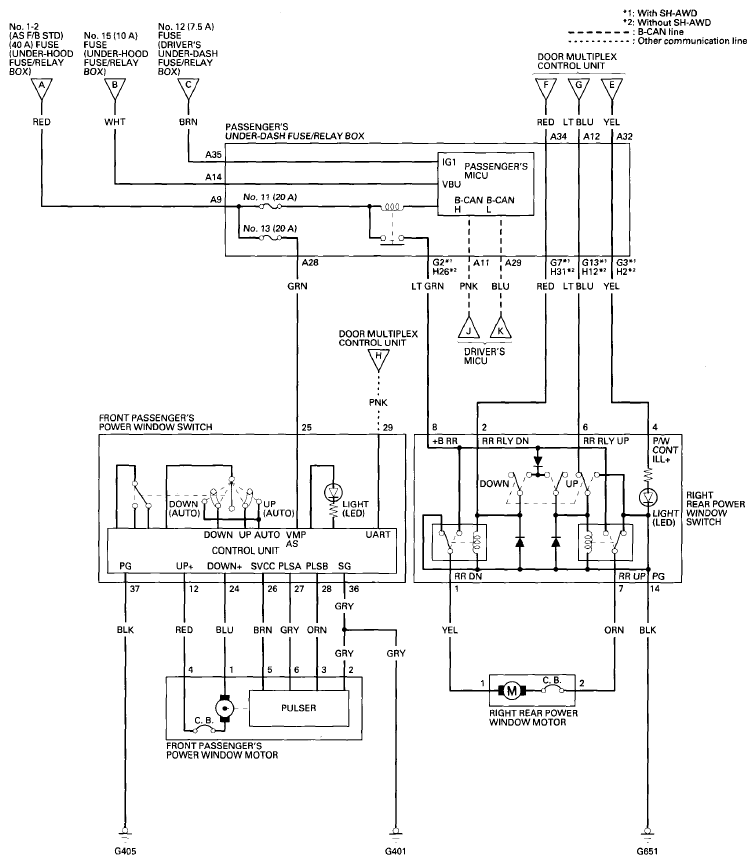

Fig 3: Power Window - Circuit Diagram (3 Of 3)

G08071452

Courtesy of AMERICAN HONDA MOTOR CO., INC.
