VSA System Components
>>
Component Location Index
Component Location Index

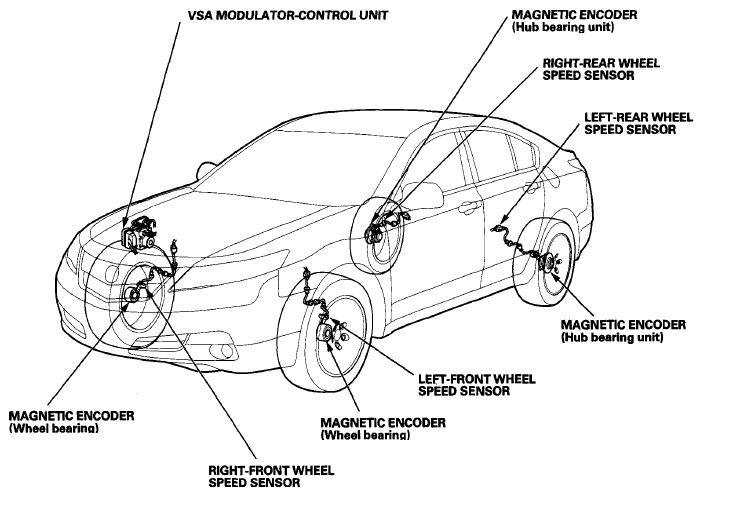

Fig 1: VSA System Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

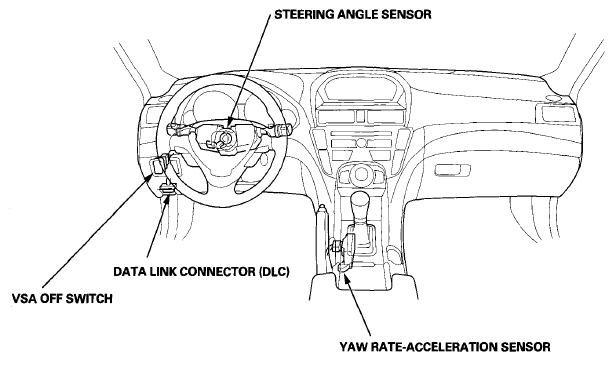

Fig 2: VSA System Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
