Component Location Index

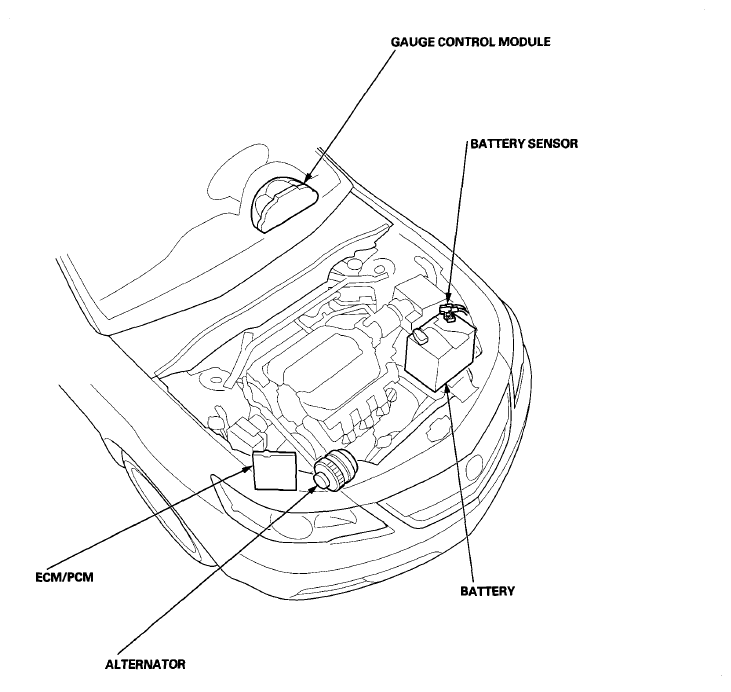

Fig 1: Battery Management System Components Location (1 Of 3)
G08071217Courtesy of AMERICAN HONDA MOTOR CO., INC.

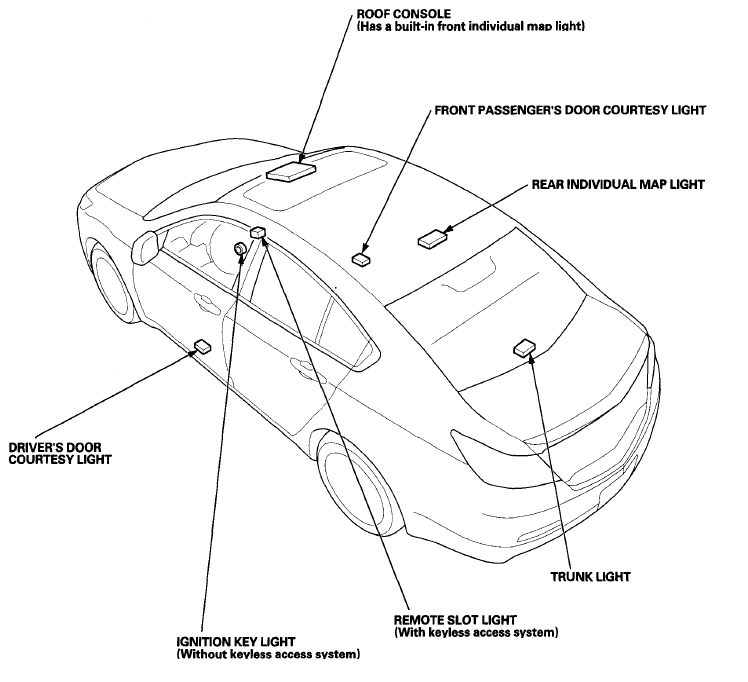

Fig 2: Battery Management System Components Location (2 Of 3)
G08071218Courtesy of AMERICAN HONDA MOTOR CO., INC.

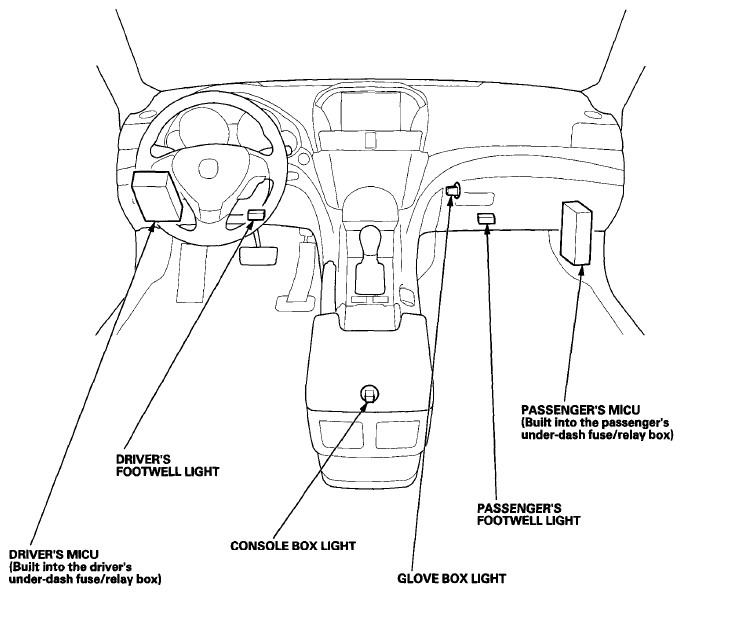

Fig 3: Battery Management System Components Location (3 Of 3)
G08071219Courtesy of AMERICAN HONDA MOTOR CO., INC.
