Home >> Acura >> 2012 >> TL Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Relay And Control Unit Locations >> Dashboard >> Notes

Relay And Control Unit Locations: Dashboard: Notes

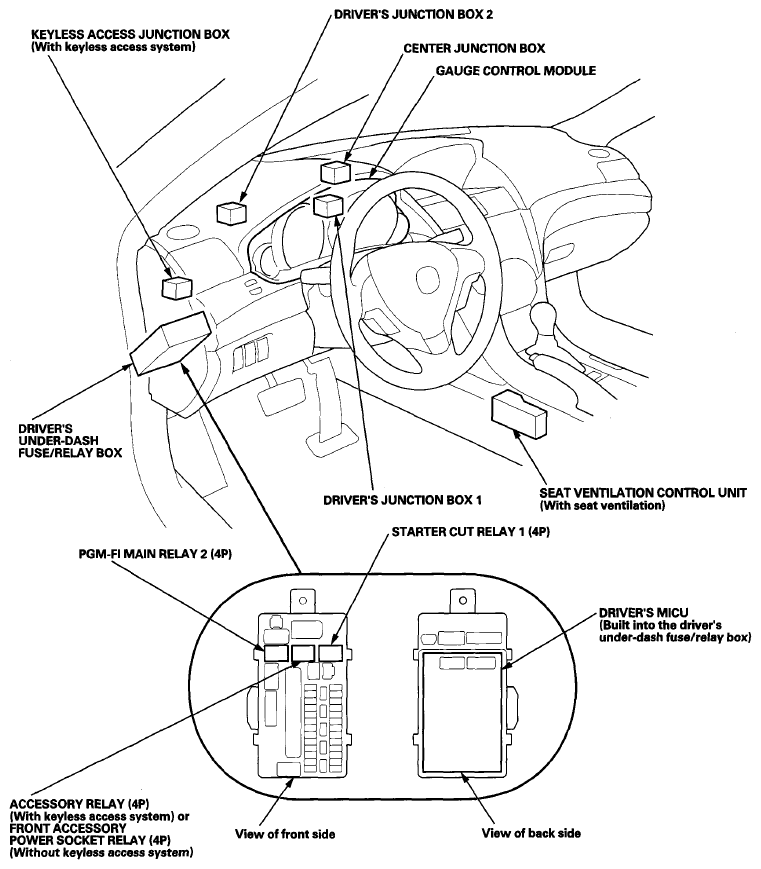

Fig 1: Dashboard Components Location

G08067448

Courtesy of AMERICAN HONDA MOTOR CO., INC.
