Relay And Control Unit Locations
>>
Engine Compartment
Engine Compartment

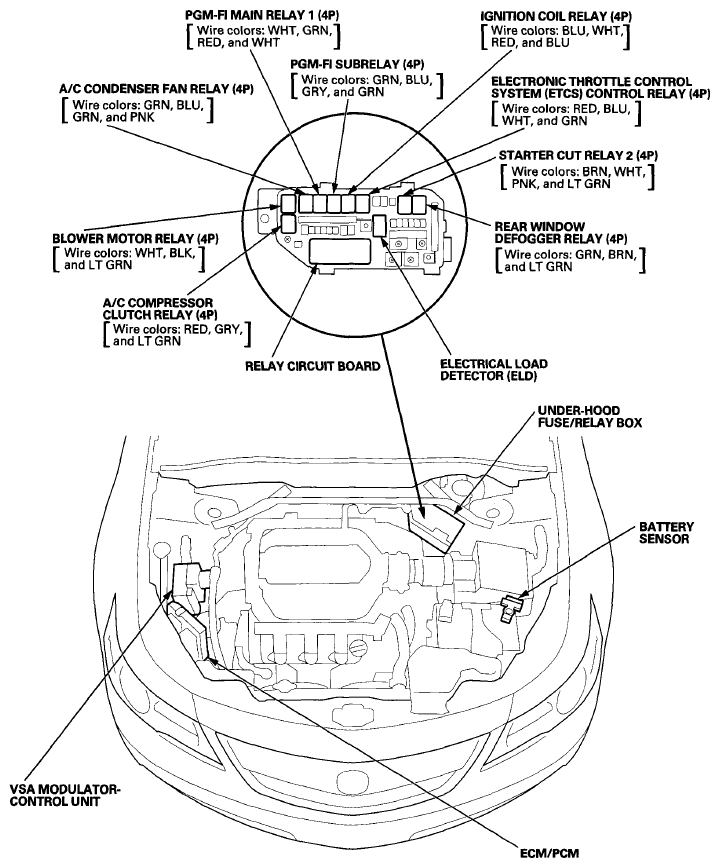

Fig 1: Engine Compartment Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
