Acura
>>
2012
>>
TL Base
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Circuit Diagram
>>
Without Keyless Access System
Without Keyless Access System

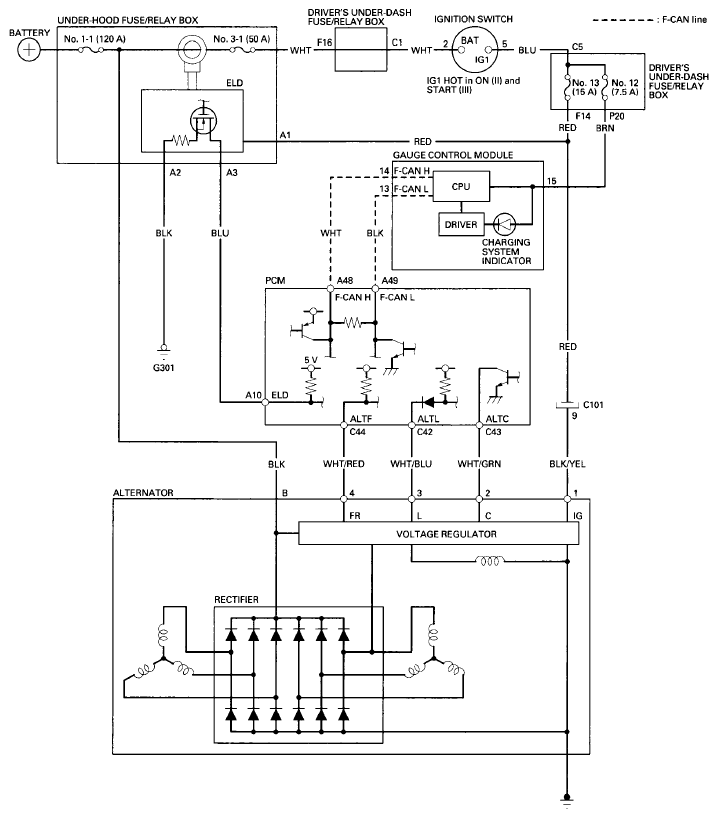

Fig 1: Charging System - Circuit Diagram (Without Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
