Center Console Panel Disassembly/Reassembly

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the center console or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when Identifying components.

Remove the CENTER CONSOLE PANEL .

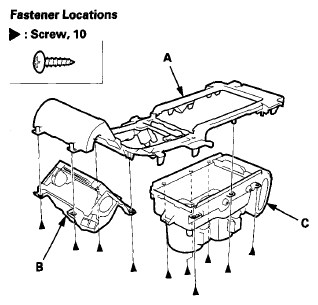

Remove the screws from the back or the center console panel (A), then remove the panel from the center console pocket assembly (B) and the beverage holder assembly (C).

Fig 1: Identifying Center Console Panel, Center Console Pocket Assembly And Beverage Holder Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

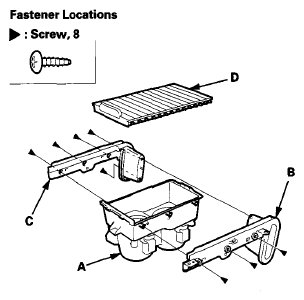

Remove the screws from both sides of the beverage holder (A), then remove the driver's side shutter rail (B), the passenger's side shutter rail (C), and the console shutter (D).

Fig 2: Identifying Beverage Holder, Driver Side And Passenger Side Shutter Rails And Console Shutter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the center console panel in the reverse order of disassembly.
