Home >> Acura >> 2012 >> TL Base >> Repair and Diagnosis >> Electrical >> Horns >> Horn Test/Replacement

Horn Test/Replacement

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (A) from each horn (B), then remove the bolt.

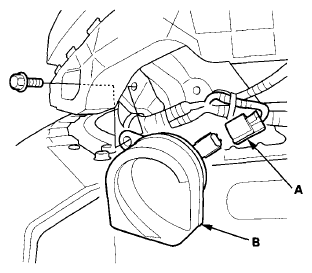

    Fig 1: Identifying 1P Connector And Horn
    G08071353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the horn by momentarily connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.
    Fig 2: Identifying Terminal And Grounding Bracket
    G08071354Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If it fails to sound, replace it.
