Engine Oil Filter Replacement

Special Tools Required

Oil Filter Wrench 07AAA-PLCA100

1. Remove the oil filter with the oil filter wrench.
2. Inspect the filter to make sure the rubber seal is not stuck to the oil filter seating surface of the engine.
3. Inspect the threads (A) and the rubber seal (B) on the new filter. Clean the seat on the oil filter base, then apply a light coat of new engine oil to the oil filter rubber seal. Use only filters with a built-in bypass system.
   Fig 1: Identifying Threads And Rubber Seal On Filter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the oil filter by hand.
5. After the rubber seal seats, tighten the oil filter clockwise with the oil filter wrench.

   Tighten: 3/4 Turn Clockwise

   Tightening Torque: 12 N.m (1.2 kgf.m, 9 lbf.ft)

   Fig 2: Turning Oil Filter Clockwise With Oil Filter Wrench

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. If four numbers or marks (1 to 4 or ↓ to ↓↓↓↓) are printed around the outside of the filter, you can use the following procedure to tighten the filter:
   • Spin the filter on until its seal lightly seats against the oil filter base, and note which number or mark is at the bottom.
   • Tighten the filter by turning it clockwise three numbers or marks from the one you noted. For example, if mark ↓ is at the bottom when the seal is lightly seated, tighten the filter until the mark ↓↓↓↓ comes around to the bottom.

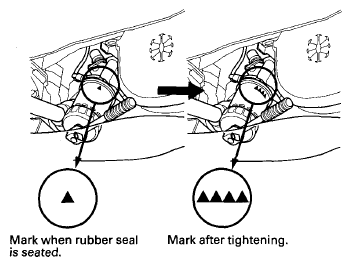

   Fig 3: Identifying Tightening Marks On Engine Oil Filter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Mark when rubber seal is seated.

   Mark after tightening.

   Number or Mark when rubber seal is seated	1 or ↓	2 or ↓↓	3 or ↓↓↓	4 or ↓↓↓↓
   Number or Mark after tightening	4 or ↓↓↓↓	1 or ↓	2 or ↓↓	3 or ↓↓↓

7. After installation, fill the engine with engine oil  to the specified level, run the engine for more than 3 minutes, then check for oil leakage.
