Oil Pump Overhaul
>>
Exploded View
Exploded View

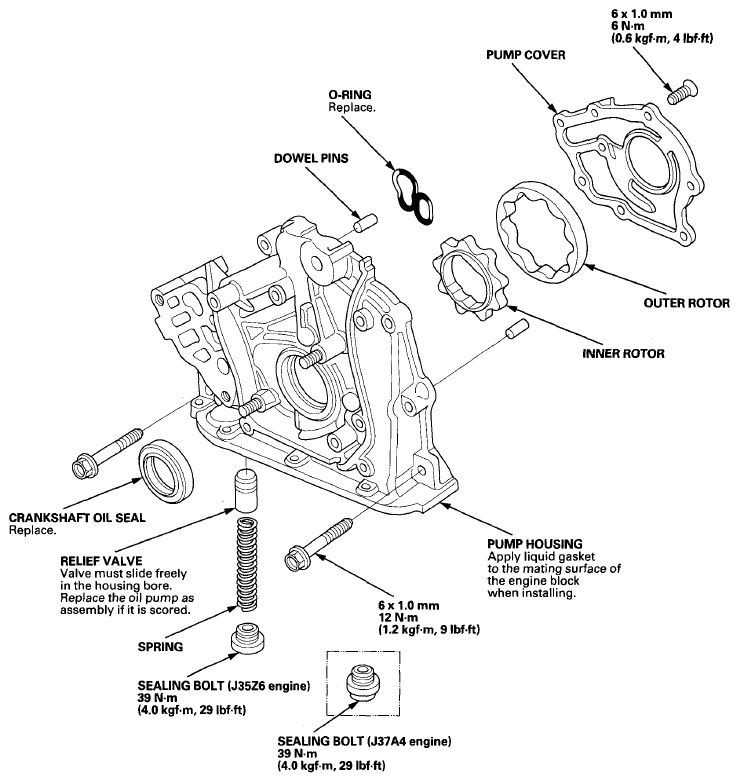

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
Oil Seal Driver, 64 mm 07OAD-RCAA100
Engine Support Hanger, A and Reds AAR-T1256*
*: Available through the Acura Tool and Equipment Program, 888-424-6857.
