Sealing Bolt Installation
Sealing Bolt Installation
NOTE:
When installing the sealing bolts (A), always use new washers (B).

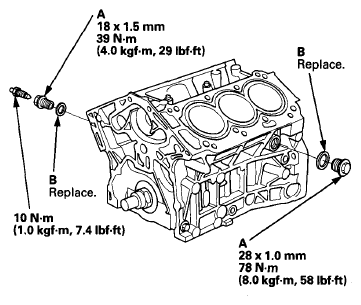

Fig 1: Sealing Bolts And Washers With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
