With SH-AWD

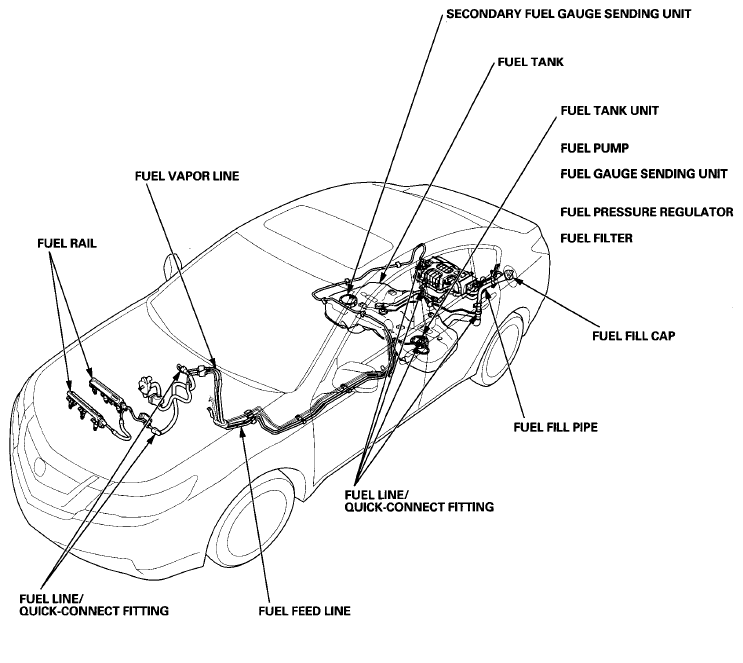

Fig 1: Fuel Supply System Components Location (With SH-AWD)
G08069681Courtesy of AMERICAN HONDA MOTOR CO., INC.

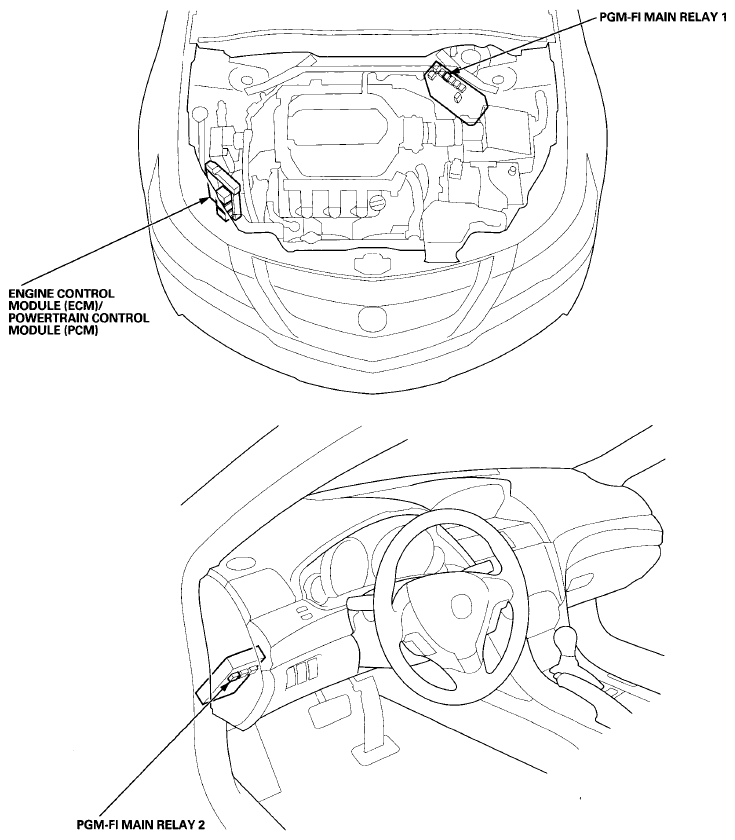

Fig 2: Identifying ECM/PCM, PGM-FI Main Relay 1 And 2
G08069682Courtesy of AMERICAN HONDA MOTOR CO., INC.
