Component Location Index
>>
Without SH-AWD
Without SH-AWD

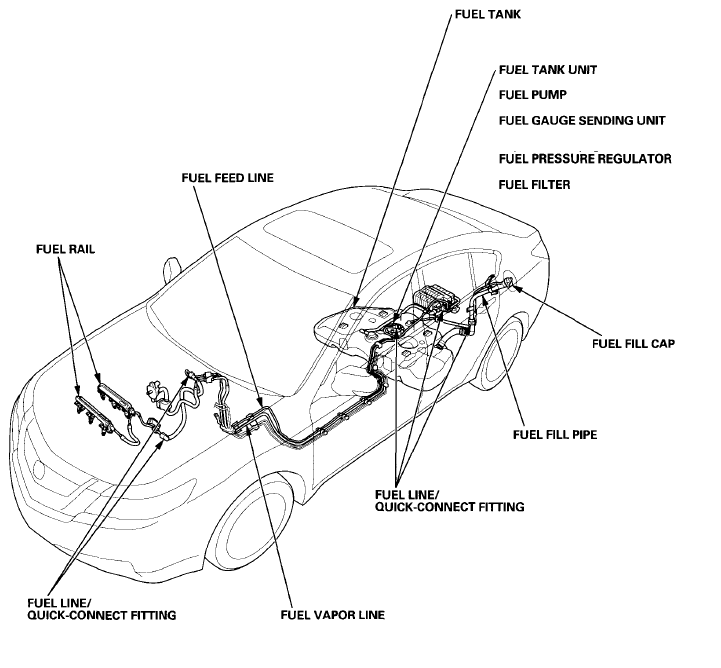

Fig 1: Fuel Supply System Components Location (Without SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
