With SH-AWD

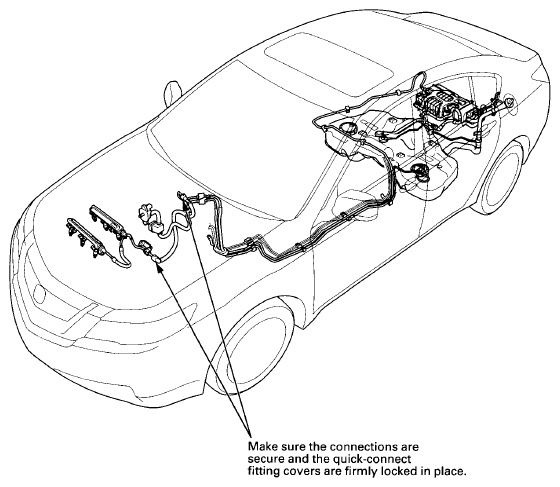

Fig 1: Overview Of Fuel System Lines And Hoses (With SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

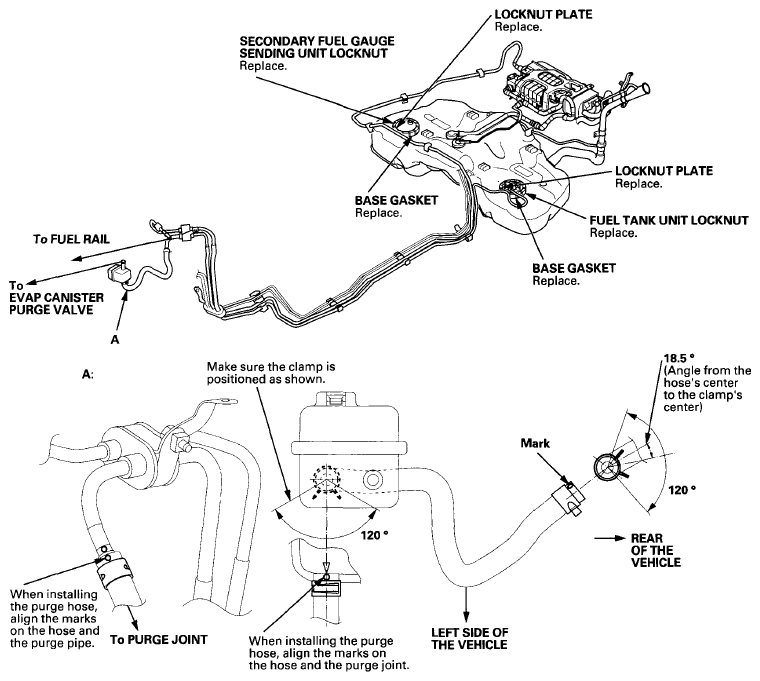

Fig 1: Identifying Fuel Line Clamps Positions (With SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
