Countershaft Bearing Replacement

Special Tools Required

• Bearing Driver Attachment, 72 x 75 mm 07746-0010600
• Adjustable Bearing Puller, 25 - 40 mm 07736-A01000B
• Driver Handle, 15 x 135L 07749-0010000
• Slide Hammer 07936-371020A
• Bearing Remover Shaft 07JAC-PH80200

1. Remove the countershaft bearing from the torque converter housing using the 25- 40 mm adjustable bearing puller, the bearing remover shaft, and the slide hammer.

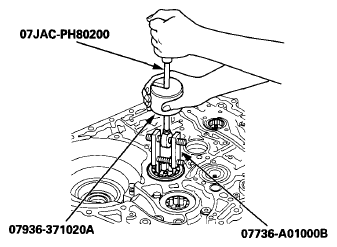

   Fig 1: Removing Countershaft Bearing Housing Using Bearing Puller, Bearing Remover Shaft And Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Check the ATF guide plate (A), and replace it if it is damaged.
   Fig 2: Identifying ATF Guide Plate And Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new bearing (B) in the direction shown.
4. Drive the bearing (A) in the torque converter housing using the 15 x 135L driver handle and the 72 x 75 mm bearing driver attachment; install the bearing outer notch-cut (B) to a depth (C) of 0- 0.14 mm (0- 0.0055 in) below the torque converter housing surface (D). 07749-0010000

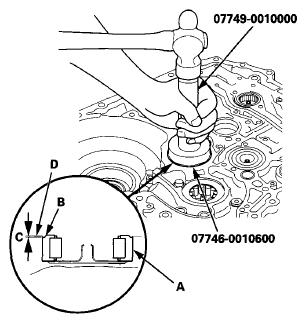

   Fig 3: Driving Bearing In Torque Converter Housing Using Driver Handle And Bearing Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
