Transfer Gear Backlash Measurement

  1. Raise the vehicle on a lift, and make sure it is supported securely.
  2. Shift the transmission into N.
  3. Make reference marks (A) across the No. 1 propeller shaft (B) and the transfer companion flange (C).

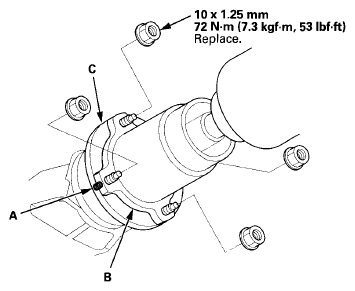

    Fig 1: Making Reference Marks Across Propeller Shaft And Transfer Companion Flange With Torque Specifications
    G08066892Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Separate the No. 1 propeller shaft from the transfer companion flange.
  5. Set a dial indicator (A) on the transfer companion flange (B); position the dial indicator tip (C) on the direct extension of the bolt hole center (D).

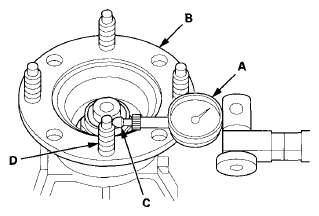

    Fig 2: Setting Dial Indicator On Transfer Companion Flange
    G08066893Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Measure the transfer gear backlash.

    Standard: 0.06 - 0.16 mm (0.0024 - 0.0063 in)

  7. If the transfer gear backlash is out of the standard, replace the transfer assembly.
