Regulator Valve Body

The regulator valve body is located on the main valve body. The regulator valve body contains the main regulator valve, the cooler relief valve, the torque converter regulator valve, the lock-up control valve, the shift fork shaft, and the 4th accumulator.

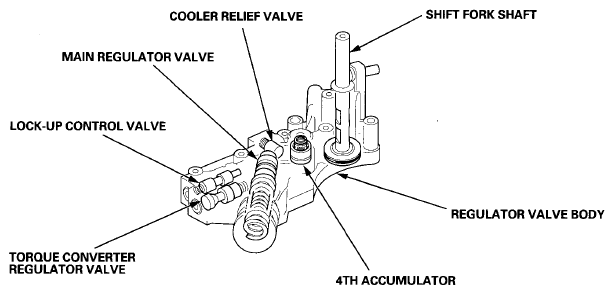

Fig 1: Identifying Regulator Valve Body And Related Components
G08066321Courtesy of AMERICAN HONDA MOTOR CO., INC.
