Component Location Index

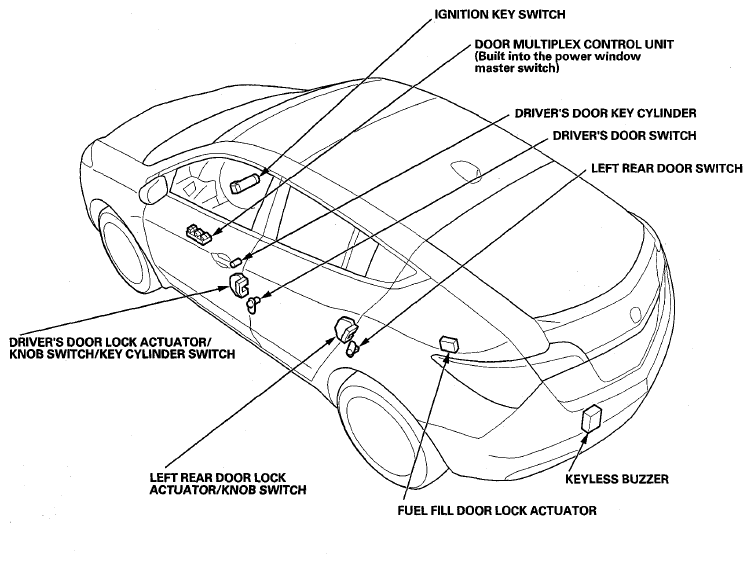

Fig 1: Identifying Keyless/Power Door Locks/Security System Component Location (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

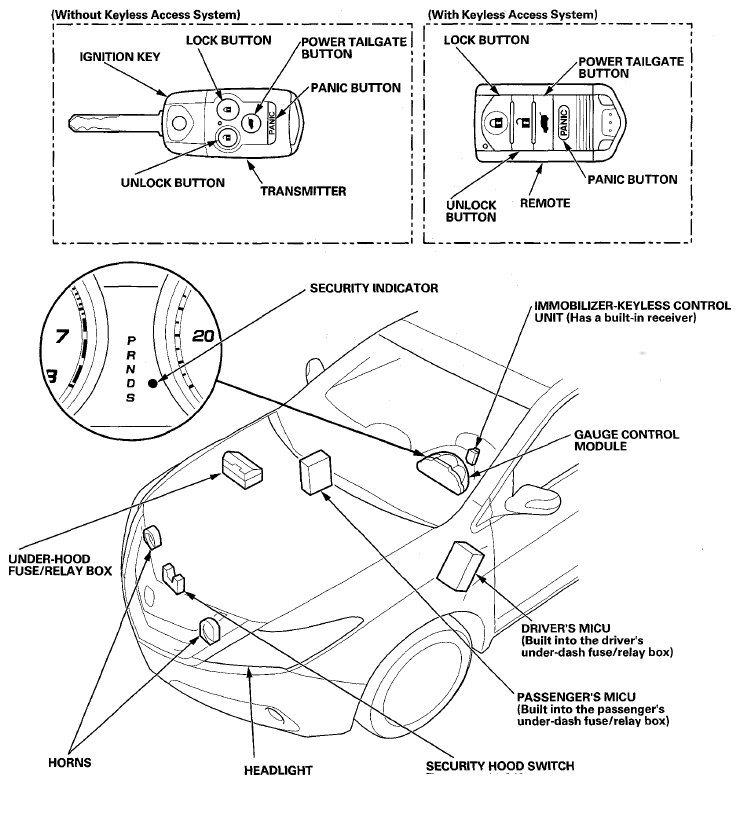

Fig 2: Identifying Keyless/Power Door Locks/Security System Component Location (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

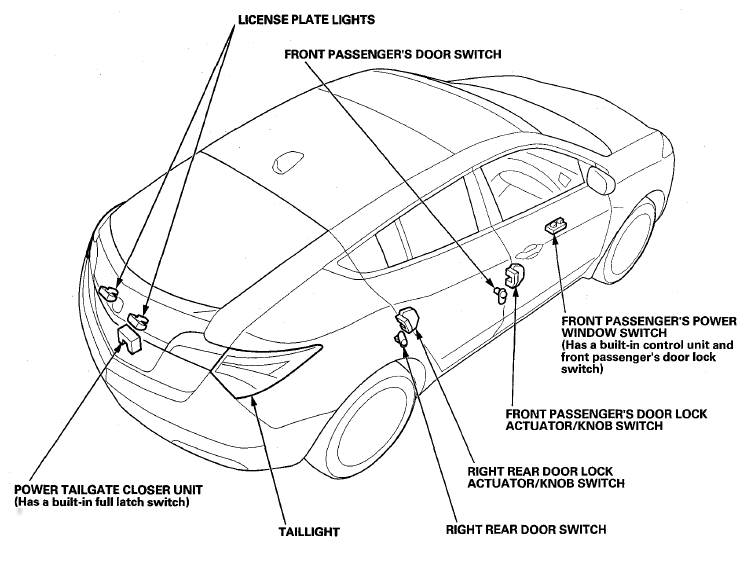

Fig 3: Identifying Keyless/Power Door Locks/Security System Component Location (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
