Keyless Buzzer Replacement

  1. Remove the taillights. (see TAILLIGHT REPLACEMENT )
  2. Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).
  3. Disconnect the 2P connector (A) from the keyless buzzer (B).

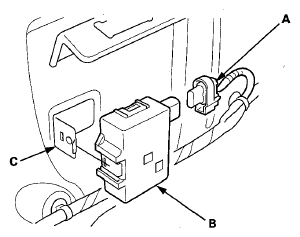

    Fig 1: Identifying Keyless Buzzer, 2P Connector And Bracket
    G08076536Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the buzzer from the bracket (C).
  5. Install the buzzer in the reverse order of removal.
