Power Mirror Switch Test/Replacement

  1. Remove the driver's outer dashboard trim (see DRIVER'S OUTER DASHBOARD TRIM REMOVAL/INSTALLATION ).

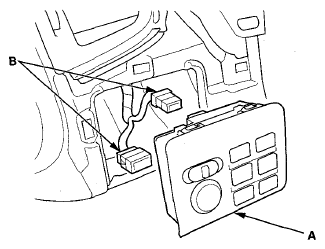

  2. Remove the multi switch (A) and disconnect the connectors (B).
    Fig 1: Identifying Multi Switch And Connectors
    G08076937Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the power mirror switch (A) from the multi switch (B).

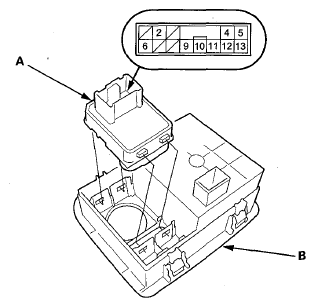

    Fig 2: Identifying Power Mirror Switch And Multi Switch Connector Terminals
    G08076938Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between the terminals in each switch position according to the table.

    Power mirror switch

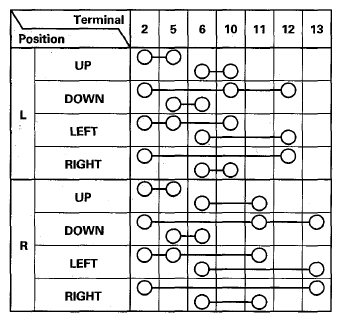

    Fig 3: Power Mirror Switch Terminals Continuity Chart
    G08076939Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the power mirror switch.
  6. Install the switch in the reverse order of removal.
