Console Accessory Power Socket Test/Replacement

NOTE: If all of the front and console accessory power sockets do not work, check the No. 18(7.5 A) fuse in the driver's under-dash fuse/relay box and ground (G403, G601) first.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the console accessory power socket (B).

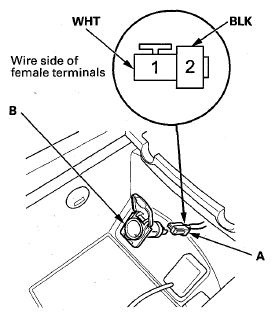

    Fig 1: Identifying Console Accessory Power Socket 2P Connector Terminals
    G08076920Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.
  4. Turn the ignition switch to ACCESSORY (I), or press the engine start/stop button to select the ACC mode:
    • With keyless access system, go to step 5.
    • Without keyless access system, go to step  6.
  5. Measure the voltage between console accessory power socket relay terminal No. 3 and body ground. There should be less than 0.2 V.
    • If there is less than 0.2 V, go to step  7.
    • If there is more than 0.2 V, check for:
      • An open or high resistance in the ground wire between console accessory power socket relay terminal No. 3 and ground (G403).
      • Poor ground (G403).
  6. Measure the voltage between driver's under-dash fuse/relay box connector D (16P) terminal No. 14 and body ground. There should be less than 0.2 V.
    • If there is less than 0.2 V, go to step 7.
    • If there is more than 0.2 V, check for:
    • An open or high resistance in the ground wire between driver's under-dash fuse/relay box connector D (16P) terminal No. 14 and ground (G601).
    • Poor ground (G601).
  7. Measure the voltage between console accessory power socket 2P connector terminal No. 1 and body ground. There should be battery voltage.
    • If there is battery voltage, go to step 8.
    • If there is no voltage, check for:
      • Blown No. 23 (15 A) fuse in the driver's under-dash fuse/relay box.
      • Faulty console accessory power socket relay.
      • Faulty driver's under-dash fuse/relay box.
      • An open or high resistance in the wire between console accessory power socket terminal No. 1 and driver's under-dash fuse/relay box connector P (20P) terminal No. 1.
  8. Check for continuity between console accessory power socket 2P connector terminal No. 2 and body ground. There should be continuity.
    • If there is continuity, replace the power socket; go to step 9.
    • If there is no continuity, check for:
      • Poor ground (G403).
      • An open or high resistance in the ground wire between console accessory power socket 2P connector terminal No. 2 and ground (G403).
  9. Gently press the tabs (A), then remove the socket (B). A
    Fig 2: Identifying Tabs And Socket
    G08076921Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Gently press the tabs (A), then remove the housing (B) from the panel. Note the location of the indexing tabs (C).

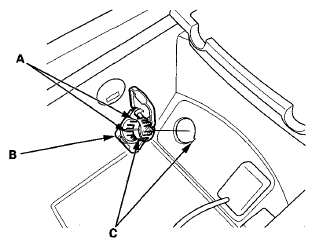

    Fig 3: Identifying Tabs And Housing
    G08076922Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the power socket in the reverse order of removal.
