Home >> Acura >> 2012 >> ZDX >> Repair and Diagnosis >> Electrical >> Body Electrical >> Battery Management System >> Component Location Index

Component Location Index

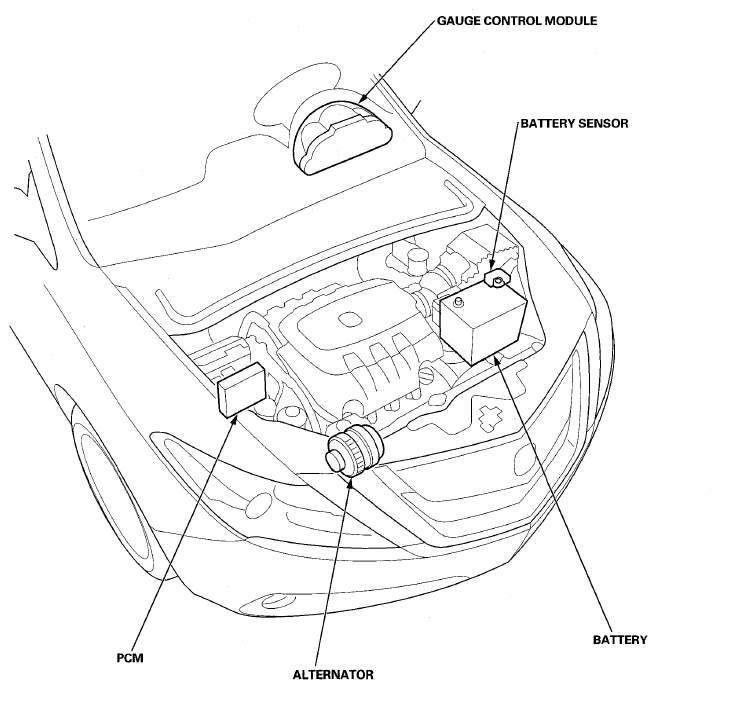

Fig 1: Identifying Battery Management System Components Location (1 Of 3)
G08074273Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Battery Management System Components Location (2 Of 3)
G08074274Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Identifying Battery Management System Components Location (3 Of 3)
G08074275Courtesy of AMERICAN HONDA MOTOR CO., INC.
