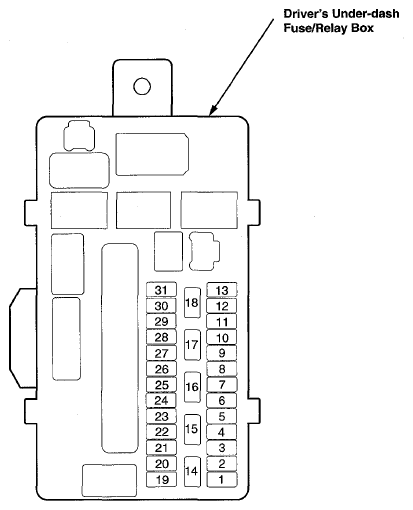

Fuse-to-Components Index
| Fuse Number | Fuse Name | Amps | See | Component or Circuit Protected | Notes |
|---|---|---|---|---|---|
| 1 | AVS BSI | 7.5A | POWER DISTRIBUTION | BSI Control Unit (BSI), Driver's Seat Ventilation Switch (Ventilated Seats), Front Passenger's Seat Ventilation Switch (Ventilated Seats), Left BSI Radar Unit (BSI), Multi Switch (Park Assist), Park Assist Unit (Park Assist), Right BSI Radar Unit (BSI), Ventilation Seat Control Unit (Ventilated Seats) | BSA, Park Assist, Ventilated Seats |
| 2 | SH-AWD | 7.5A | POWER DISTRIBUTION | ACC Unit (ACC), Active Damper Control Unit (IDS), Brake Light Relay (ACC), ECPS Control Unit (IDS), E-Pretensioner Unit (ACC), Millimeter Wave Radar (ACC), SH-AWD Control Unit | |
| 3 | WASHER | 20A | POWER DISTRIBUTION | Windshield Washer Relay | |
| 4 | WIPER | 7.5A | POWER DISTRIBUTION | Windshield Wiper Relay | |
| 5 | ODS | 7.5A | POWER DISTRIBUTION | Hazard Warning Switch/Passenger's Airbag Cutoff Indicator (USA, Canada), ODS Unit, SRS Unit | |
| 6 | VSA | 7.5A | POWER DISTRIBUTION | Steering Angle Sensor, VSA Modulator-Control Unit, Yaw Rate-Accelerator Sensor | |
| 7 | - | - | POWER DISTRIBUTION | Not Used | |
| 8 | STRLD | 7.5A | POWER DISTRIBUTION | PCM | |
| 9 | FUEL PUMP | 20A | POWER DISTRIBUTION | Electronic Steering Lock (Keyless Access), Fuel Pump Relay, Immobilizer-Keyless Control Unit (without Keyless Access), Keyless Access Control Unit (Keyless Access), PCM, Remote Slot Control Unit (Keyless Access) | |
| 10 | VB SOL | 10A | POWER DISTRIBUTION | PCM | |
| 11 | SRS | 10A | POWER DISTRIBUTION | SRS Unit | |
| 12 | METER | 7.5A | POWER DISTRIBUTION | A/T Gear Position Indicator Panel, A/T Reverse Relay, AcuraLink Control Unit (XM Receiver) (AcuraLink), Driver's MICU, Gauge Control Module, Integrated Dynamics System Switch (IDS), Passenger's MICU, Power Mirror Control Unit, Power Seat Control Unit, Power Tailgate Control Unit, Power Tilt/Telescopic Steering Control Unit, TPMS Control Unit | |
| 13 | ACG | 15A | POWER DISTRIBUTION | Alternator, Brake Pedal Position Switch, ELD Unit, Engine Mount Control Solenoid Valve, EVAP Canister Purge Valve, PCM | |
| 14 | - | - | POWER DISTRIBUTION | Not Used |
| Fuse Number | Fuse Name | Amps | See | Component or Circuit Protected | Notes |
|---|---|---|---|---|---|
| 15 | DRL | 7.5A | POWER DISTRIBUTION | Driver's MICU | |
| 16 | A/C | 7.5A | POWER DISTRIBUTION | A/C Compressor Clutch Relay, A/C Condenser Fan Relay, Audio and HVAC Switch Panel (without Navigation), Audio-Navigation and HVAC Switch Panel (Navigation), Automatic Dimming Inside Mirror, Blower Motor Relay, Climate Control Unit, Driver's Seat Heater Switch (without Ventilated Seats), Fan Control Relay, Front Passenger's Seat Heater Switch (without Ventilated Seats), Left Rear Seat Heater Switch (Rear Seat Heaters), Power Mirror Switch, Power Window Master Switch, Rear Window Defogger Relay, Right Rear Seat Heater Switch (Rear Seat Heaters), Seat Ventilation Relay (Ventilated Seats) | |
| 17 | ACC KEY | (7.5A) | POWER DISTRIBUTION | Driver's MICU | without Keyless Access |
| 18 | ACC | 7.5A | POWER DISTRIBUTION | AcuraLink Control Unit (XM Receiver) (AcuraLink), Audio and HVAC Switch Panel (without Navigation), Audio-Navigation and HVAC Switch Panel (Navigation), Audio-Navigation Unit (Navigation), Audio Unit (without Navigation), Console Accessory Power Socket Relay, Driver's MICU (Keyless Access), Front Accessory Power Socket Relay, Front HFL-ANC/Active Sound Control Microphone (without Navigation), Front HFL-Navigation-ANC/ Active Sound Control Microphone (Navigation), HandsFreeLink Control Unit, Interface Dial (Navigation), Keyless Access Control Unit (Keyless Access), Navigation Display Unit (Navigation), Remote Slot Control Unit (Keyless Access) | |
| 19 | DR P/SEAT (SLIDE) | 20A | POWER DISTRIBUTION | Power Seat Control Unit | |
| 20 | SUNROOF | 20A | POWER DISTRIBUTION | Panoramic Glass Roof Control Unit/Motor Unit | |
| 21 | DR P/SEAT (REC) | 20A | POWER DISTRIBUTION | Power Seat Control Unit | |
| 22 | P/W REAR L | 20A | POWER DISTRIBUTION | Left Rear Power Window Relay | |
| 23 | FR ACC SOCKET | 15A | POWER DISTRIBUTION | Console Accessory Power Socket Relay | |
| 24 | P/W DR | 20A | POWER DISTRIBUTION | Power Window Master Switch | |
| 25 | DOOR LOCK DR | (15A) | POWER DISTRIBUTION | Driver's Door Unlock Relay, Door Lock Relay, Door Unlock Relay | |
| 26 | FR FOG L | 10A | POWER DISTRIBUTION | Driver's MICU | |
| 27 | SMALL (EXTRA) L | 10A | POWER DISTRIBUTION | Driver's MICU | |
| 28 | H/L DRL L | 10A | POWER DISTRIBUTION | Driver's MICU | |
| 29 | TPMS | 7.5A | POWER DISTRIBUTION | TPMS Control Unit | |
| 30 | H/LL | 15A | POWER DISTRIBUTION | Driver's MICU | |
| 31 | - | - | - | Not Used |
