Fuse-to-Components Index

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected	Notes
1	BATTERY	120A	POWER DISTRIBUTION	Battery, Power Supply
1	AS F/B STD	40A	POWER DISTRIBUTION	Fuses 8, 9, 10, 11, 12, and 13 in the Passenger's Under-dash Relay Box
2	-	70A	POWER DISTRIBUTION	Not Used
	-	40A	POWER DISTRIBUTION	Not Used	Canada, Mexico
	H/L WASHER	30A	POWER DISTRIBUTION	Headlight Washer Relay
	AS F/B OPTION	40A	POWER DISTRIBUTION	Fuses 15, 16, 17, 18, and 19 in the Passenger's Under-dash Fuse/Relay Box
	EPT R	30A	POWER DISTRIBUTION	E-Pretensioner Unit	ACC
	EPT L	30A	POWER DISTRIBUTION	E-Pretensioner Unit	ACC
3	IG MAIN	50A	POWER DISTRIBUTION	Ignition Switch (without Keyless Access), Power Control Unit (Keyless Access), Starter Cut Relay 1, Starter Cut Relay 2
	SUB FAN MOTOR	40A	POWER DISTRIBUTION	A/C Condenser Fan Relay
	-	50A	POWER DISTRIBUTION	Not Used
	DR F/B STD	60A	POWER DISTRIBUTION	Fuses 19, 20, 21, 22, 23, 24, and 25 in the Driver's Under-dash Fuse/Relay Box
	MAIN FAN MOTOR	40A	POWER DISTRIBUTION	Radiator Fan Relay
	DR LIGHT MAIN	30A	POWER DISTRIBUTION	Fuses 26, 27, 28, 29, and 30 in the Driver's Under-dash Fuse/Relay Box
	WIPER MOTOR	30A	POWER DISTRIBUTION	Windshield Wiper Relay
	-	30A	POWER DISTRIBUTION	Not Used
4	HEATER MOTOR	40A	POWER DISTRIBUTION	Blower Motor Relay
5	AS LIGHT MAIN	30A	POWER DISTRIBUTION	Fuses 1, 2, 3, and 4 in the Passenger's Under-dash Fuse/Relay Box
6	-	-	POWER DISTRIBUTION	Not Used
7	-	-	POWER DISTRIBUTION	Not Used
8	RR DEFROSTER	40A	POWER DISTRIBUTION	Rear Window Defogger Relay
9	TRAILER TURN/STOP	7.5A	POWER DISTRIBUTION	Optional Connector for Trailer
10	STOP & HORN	15A	POWER DISTRIBUTION	Brake Light Relay, Brake Pedal Position Switch, Horn Relay
11	TRAILER SMALL	7.5A	POWER DISTRIBUTION	Optional Connector for Trailer
12	ADS	30A	POWER DISTRIBUTION	Active Damper Control Unit	IDS
13	IG COIL	15A	POWER DISTRIBUTION	Ignition Coil Relay

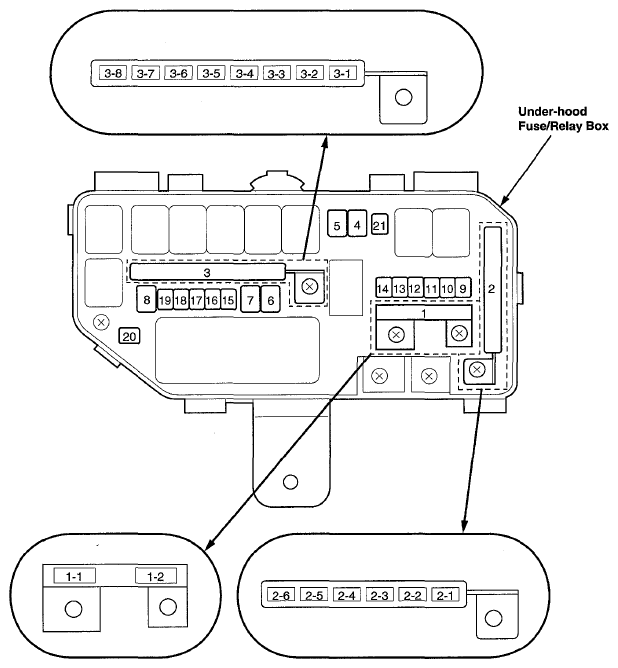

Fig 1: Under-Hood Fuse/Relay Box (6-11)

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected	Notes
14	FI SUB	15A	POWER DISTRIBUTION	PGM-FI Sub-Relay, Fuse 21 in the Under-hood Fuse/Relay Box
15	BACK UP	10A	POWER DISTRIBUTION	ACC Unit (ACC), AcuraLink Control Unit (XM Receiver) (AcuraLink), ANC/Active Sound Control Unit, Audio and HVAC Switch Panel (without Navigation), Audio Display Unit (without Navigation), Audio-Navigation and HVAC Switch Panel (Navigation), Audio-Navigation Unit (Navigation), Audio Unit (without Navigation), DLC, Door Courtesy Lights, Driver's MICU, Front HFL-Navigation-ANC/Active Sound Control Microphone, Gauge Control Module, HandsFreeLink Control Unit, Immobilizer-Keyless Control Unit (without Keyless Access), Keyless Access Control Unit (Keyless Access), Navigation Display Unit (Navigation), Passenger's MICU, Power Control Unit (Keyless Access), Power Mirror Control Unit, Power Seat Control Unit, Power Tailgate Control Unit, Power Tilt/Telescopic Steering Control Unit, Power Window Master Switch, Remote Slot Control Unit (Keyless Access)
16	INTR LT	7.5A	POWER DISTRIBUTION	Ignition Key Switch (without Keyless Access), Optional Running Board Lights, Power Tailgate Inside Switch, Rear Individual Map Light, Roof Console, Tailgate Light, Vanity Mirror Lights
17	FI MAIN	15A	POWER DISTRIBUTION	Fuel Pump Relay, PGM-FI Main Relay
18	DBW	15A	POWER DISTRIBUTION	ETCS Control Relay
19	WOOFER	15A	POWER DISTRIBUTION	Subwoofer	Navigation
20	MG CLUTCH	7.5A	POWER DISTRIBUTION	A/C Compressor Clutch Relay
21	BAD FAN TIMER	7.5A	POWER DISTRIBUTION	A/C Diode B, Radiator Fan Relay

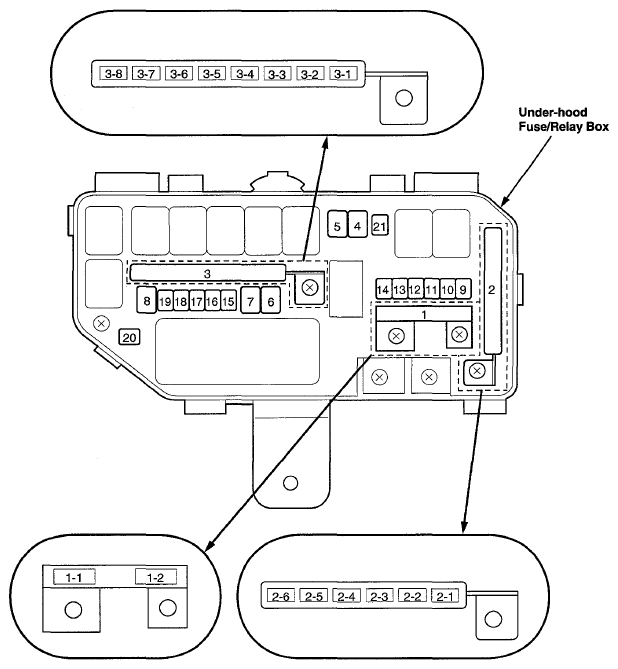

Fig 2: Under-Hood Fuse/Relay Box (6-13)
