Acura
>>
2012
>>
ZDX
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Relay And Control Unit Locations
>>
Dashboard
>>
Without Keyless Access System
Without Keyless Access System

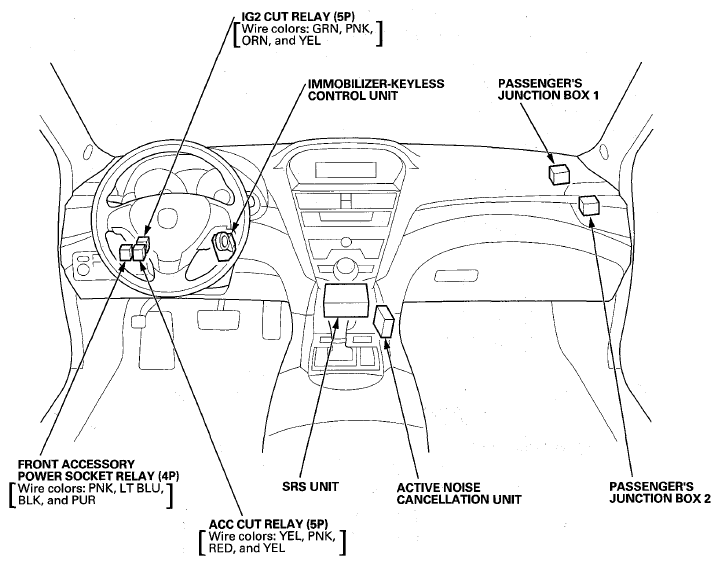

Fig 1: Identifying Relay And Control Unit Locations - Without Keyless Access System (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

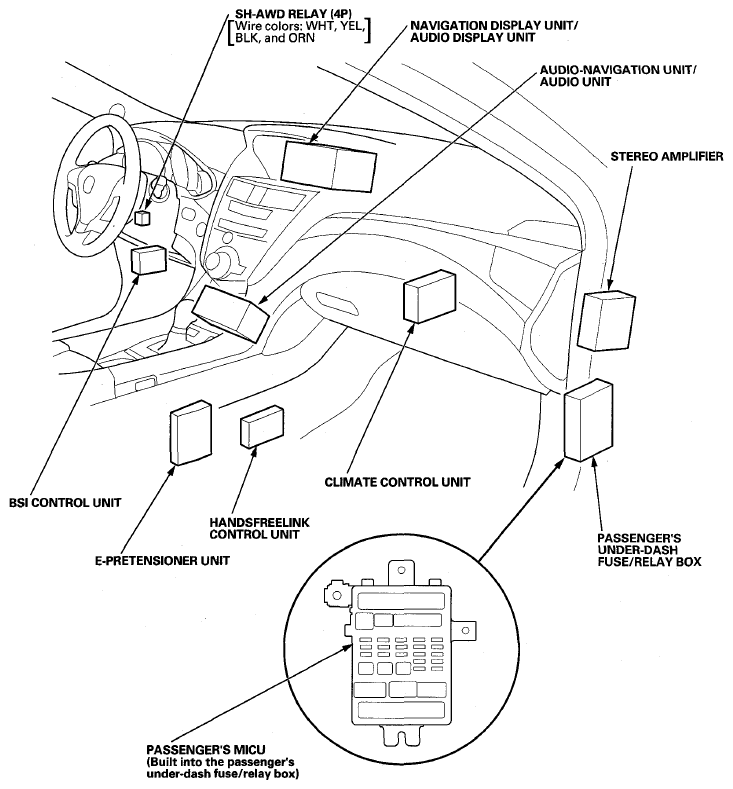

Fig 2: Identifying Relay And Control Unit Locations - Without Keyless Access System (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
