Exploded View

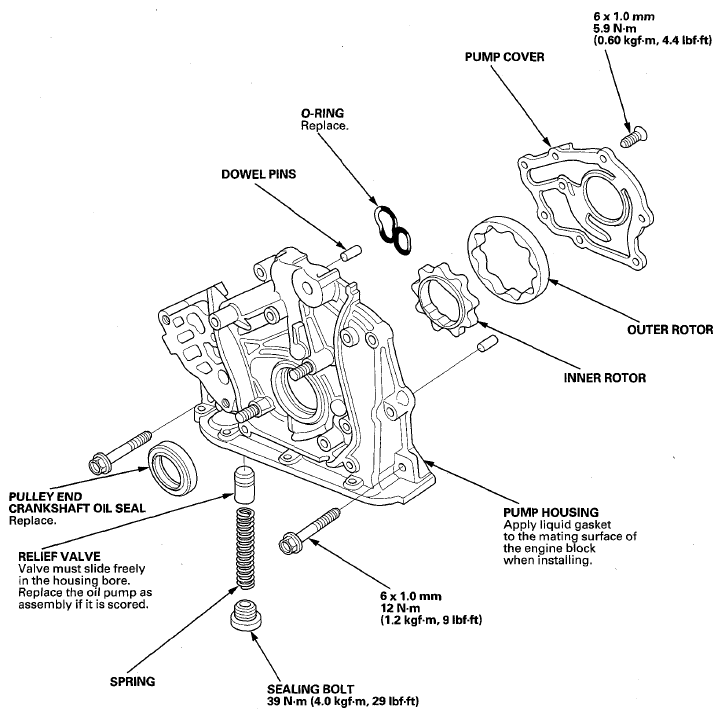

Fig 1: Exploded View Of Oil Pump Overhaul With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil Seal Driver, 64 mm 07OAD-RCAA100
• Hood Prop Bar 07AAZ-SZNA100
• Engine Hanger Adapter Set VSB02C000031 *
• Engine Support Hanger, A and Reds AAR-T1256*

*: Available through the Acura Tool and Equipment program 888-424-6857.
