Fuel Fill Pipe Removal/Installation
- Drain the fuel tank (see FUEL TANK DRAINING
).
- Remove the fuel fill cap.
- Raise the vehicle on a lift.
- Remove the left rear wheel.
- Remove the left rear inner fender (see
REAR INNER FENDER REPLACEMENT
).

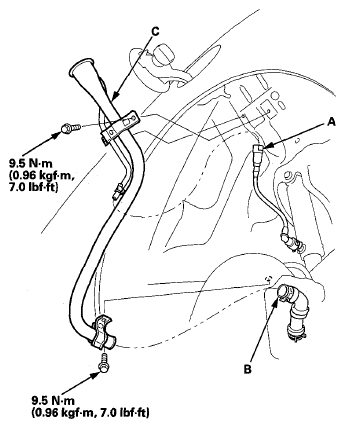

- Disconnect the quick-connector fitting (A) and the fuel fill tube (B) from the fuel fill pipe (C). Slide back the clamp, then twist the hose as you pull to avoid damaging it.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the fuel fill pipe.
- Install the parts in the reverse order of removal.
