Power Assist Check

NOTE: This test should be done with original equipment tires and wheels at the correct tire pressure.
  1. Check the power steering fluid level (see FLUID CHECK/REPLACEMENT ).
  2. Start the engine, let it idle, and turn the steering wheel from lock to lock several times to warm up the fluid.
  3. Attach the spring scale (A) to the steering wheel. With the engine idling and the vehicle on a clean, dry floor, pull the scale as shown in illustration, and read it as soon as the tires begin to turn.
    • If the scale reads no more than the specification, the steering gearbox and pump are OK.
    • If the scale reads more than the specification, troubleshoot the steering system (see SYMPTOM TROUBLESHOOTING ).

    Initial turning load: 29 N (3.0 kgf, 6.6 lbf)

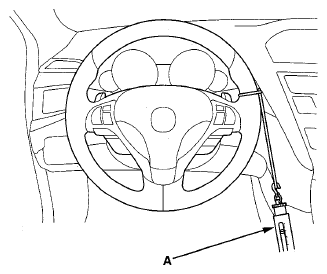

    Fig 1: Attaching Spring Scale To Steering Wheel
    G08073224Courtesy of AMERICAN HONDA MOTOR CO., INC.
