Fuel Pump Control Module Replacement

  1. Remove the left side rear seat side bolster (see SEAT SIDE BOLSTER ).
  2. Disconnect the fuel pump control module connector (A).

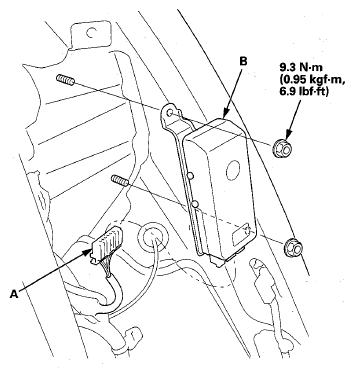

    Fig 1: Fuel Pump Control Module And Connector With Torque Specifications
    G08072984Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pump control module (B).
  4. Install the parts in the reverse order of removal.
