Select/Reset/Information Switch Test/Replacement

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Remove the paddle shifter (+) (upshift switch) (see PADDLE SHIFTER REPLACEMENT ).
  3. Disconnect the 12P connector (A) from the select/reset/information switch (B).

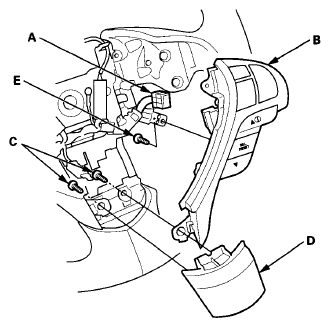

    Fig 1: Identifying 12P Connector, Select/Reset/Information Switch, Center Trim & Fasteners
    G08071586Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screws (C), then pull out the center trim (D) from the steering wheel.
  5. Remove the screw (E), then pull the select/reset/information switch from the steering wheel.
  6. Measure the resistance between select/reset/information switch 12P connector terminals No. 4 and No. 11 in each switch position according to the table.
    Fig 2: Select/Reset/Information Switch 12P Connector End View
    G08071587Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Position Resistance
    ↑ About 1, 043 Ω
    SEL/RESET About 33 Ω
    ↓ About 363 Ω
  7. If the resistance is not as specified, replace the switch.
  8. If the switch is OK, but there is a problem with the switch function, check the cable reel subharness and cable reel.
