Home >> Acura >> 2021 >> RDX Base >> Repair and Diagnosis >> Electrical >> Charging Systems >> Alternator Components - Service Information >> Exploded View >> Alternator Components >> Repair Procedure >> Notes

Repair Procedure: Notes

How to use this Service Information .

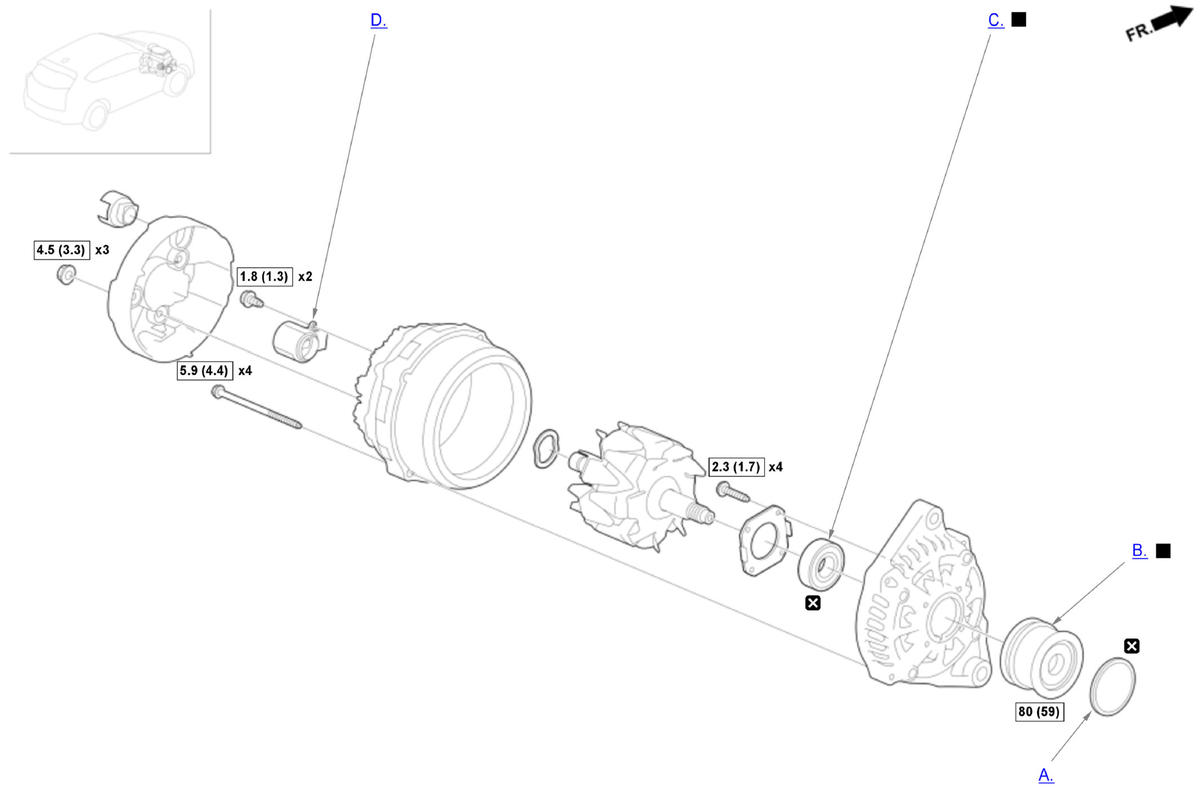

Fig 1: Alternator Components Replacement Components With Torque Specifications
GHH339213Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
