Repair Procedure: Procedure

  1. A.

    ■ Sub-Procedure

    NOTE: While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

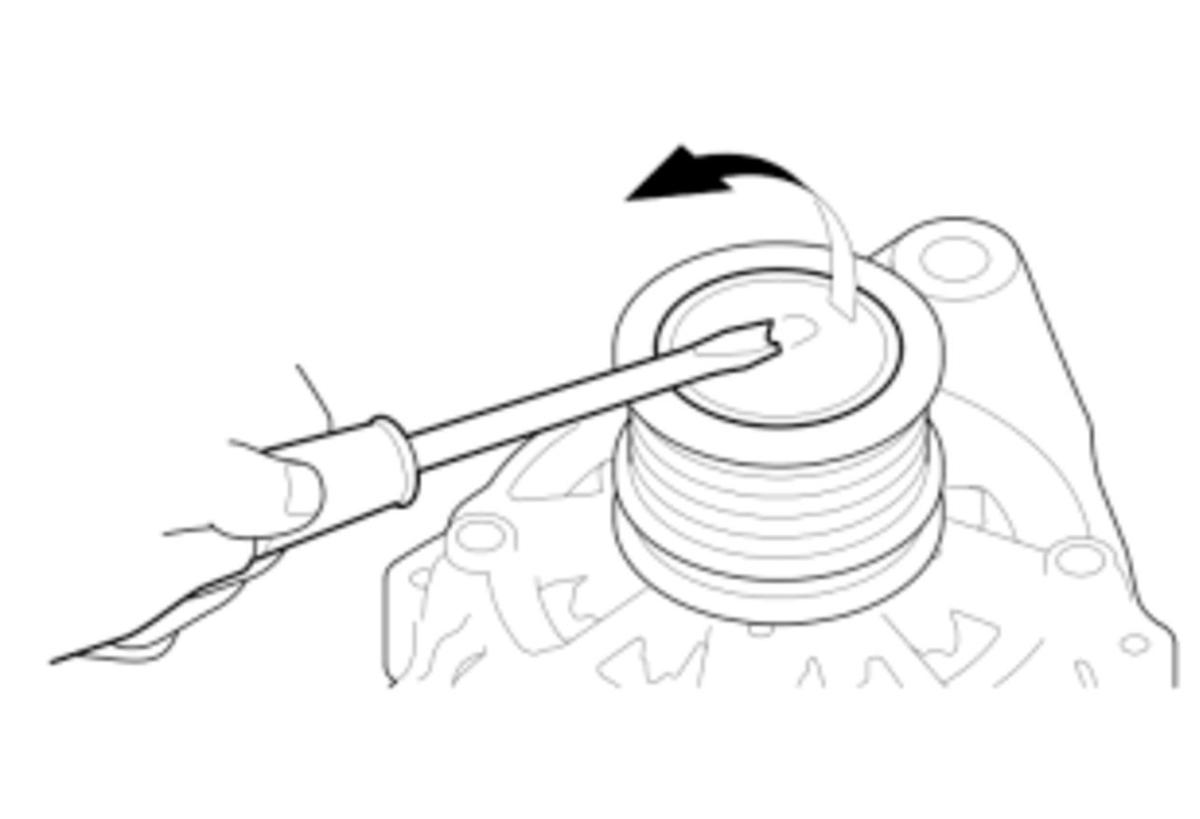

    GHH339214Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Remove the OAD pulley seal cap by piercing the center of the rubber cap with a flat screwdriver and prying it loose.

    • Installation

    NOTE:
    • When installing, do not distort the OAD pulley seal cap.
    • Make sure to check that the cap is installed securely.
  2. B.

    ■ Sub-Procedure

    NOTE: The grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

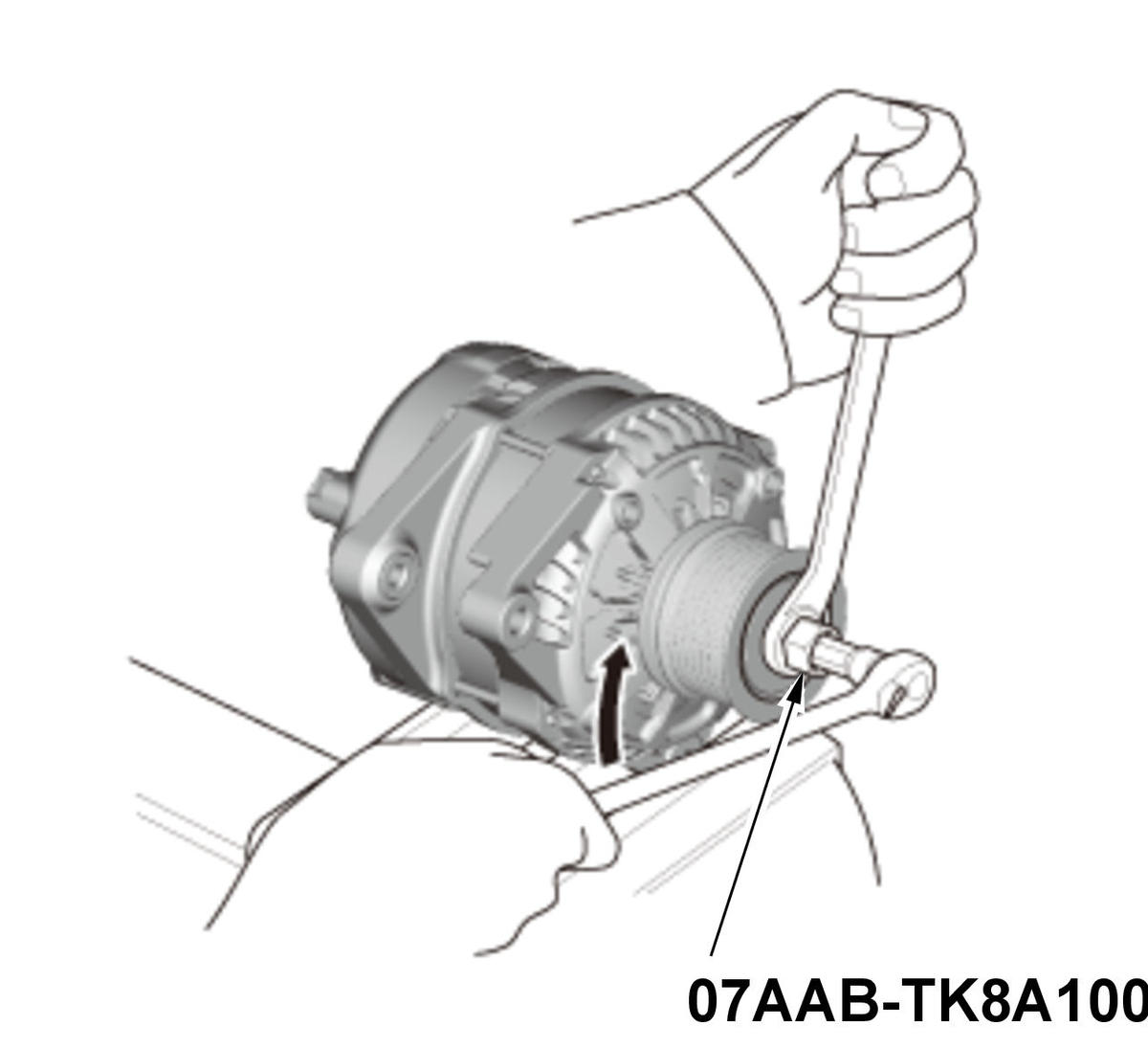

    GHH339215Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Turn the alternator shaft clockwise.
  3. C.

    ■ Sub-Procedure

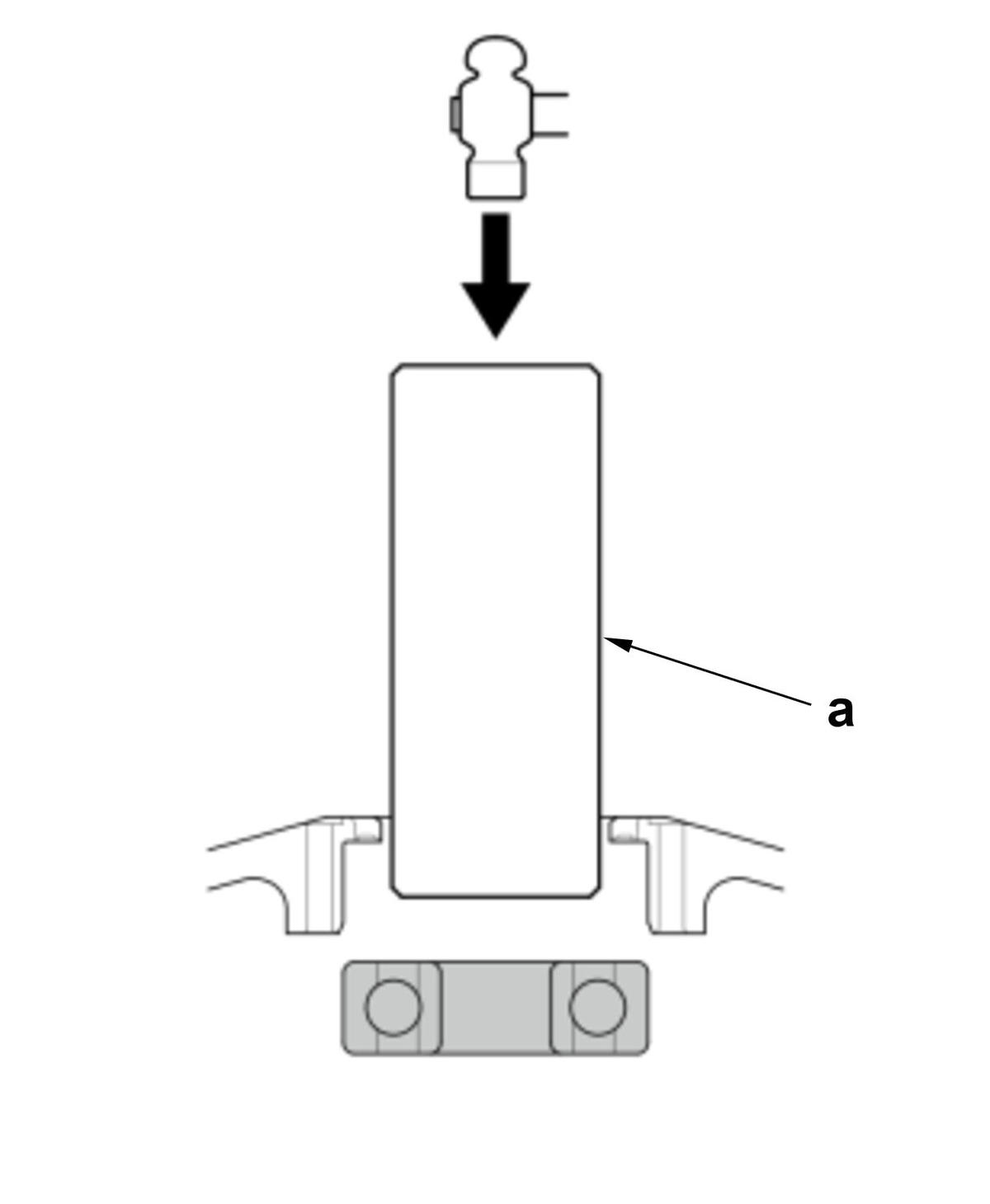

    Figure 1

    GHH339216Courtesy of HONDA, U.S.A., INC.

    • Removal

    Tool Specifications (Figure 1)

    Specifications
    a: Brass Drift

    Figure 2

    GHH339217Courtesy of HONDA, U.S.A., INC.

    • Installation

    Installation Depth (Figure 2)

    Specifications
    c: No Clearance
  4. D.

    ■ Sub-Procedure

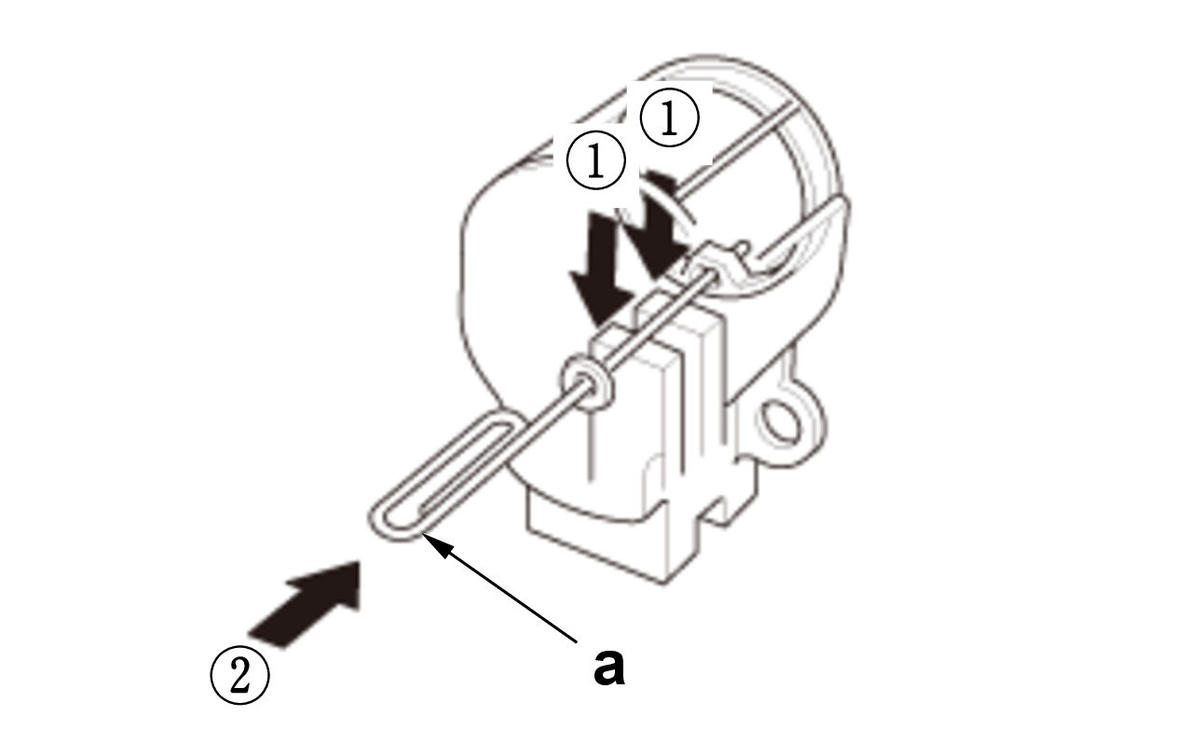

    GHH339218Courtesy of HONDA, U.S.A., INC.

    • Installation

    Pin Diameter Specifications

    Position Specifications
    a about 1.6 mm (0.063 in)
