Repair Procedure: Procedure

  1. A.

    ■ Sub-Procedure

    NOTE: To seat the new brushes, slip a strip of 500 or 600 grit sandpaper, with the grit side up, between the commutator and each brush, and smoothly turn the armature. The contact surface of the brushes will be sanded to the same contour as the commutator.
  2. B.

    ■ Sub-Procedure

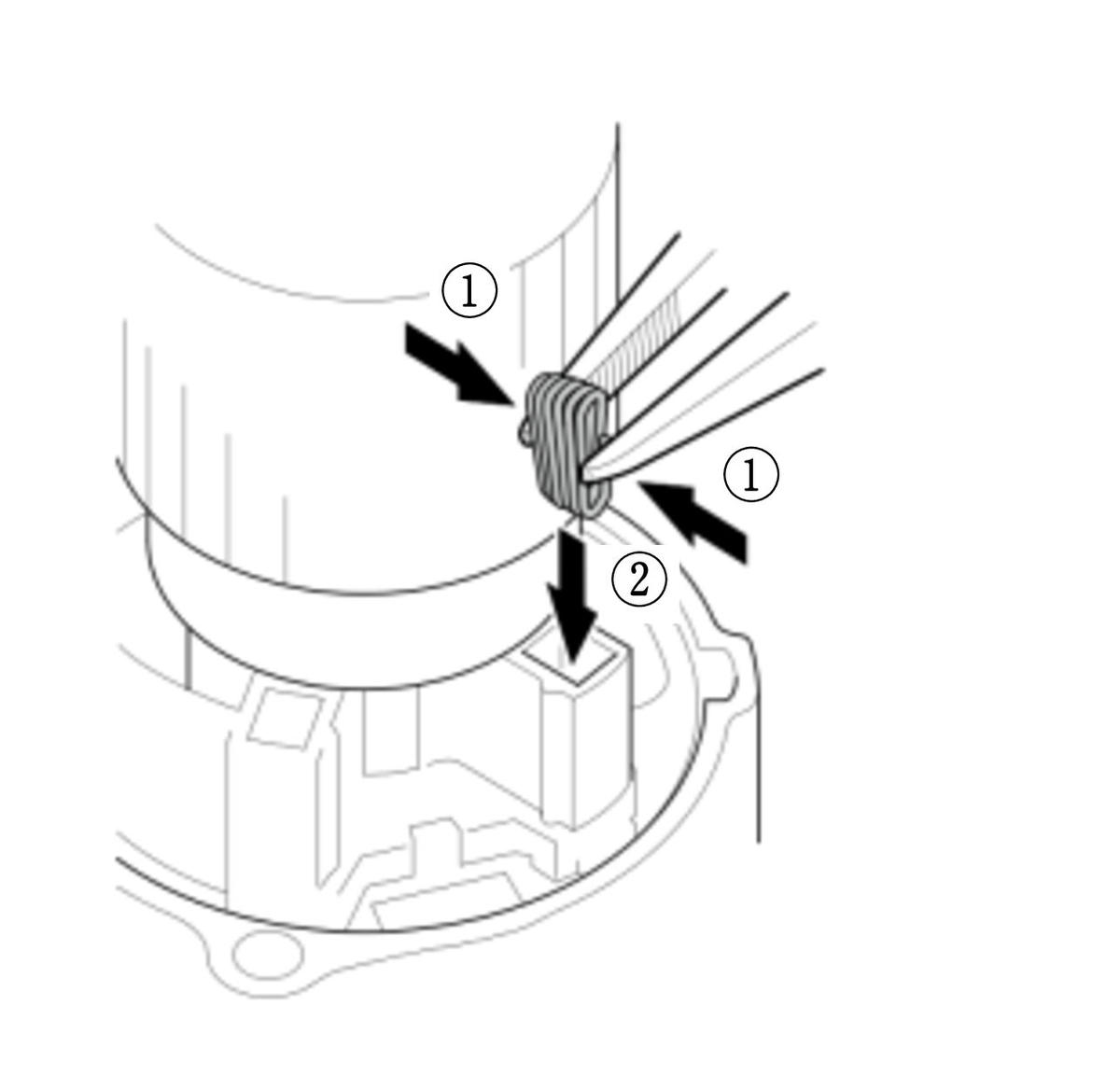

    GHH340234Courtesy of HONDA, U.S.A., INC.

    • Installation

    • Insert the brush spring until it bottoms.
