VSA Off Switch Test: Test

How to use this manual .

1. VSA OFF Switch - Test

   Preconditions

   • Driver's Outer Trim Removed

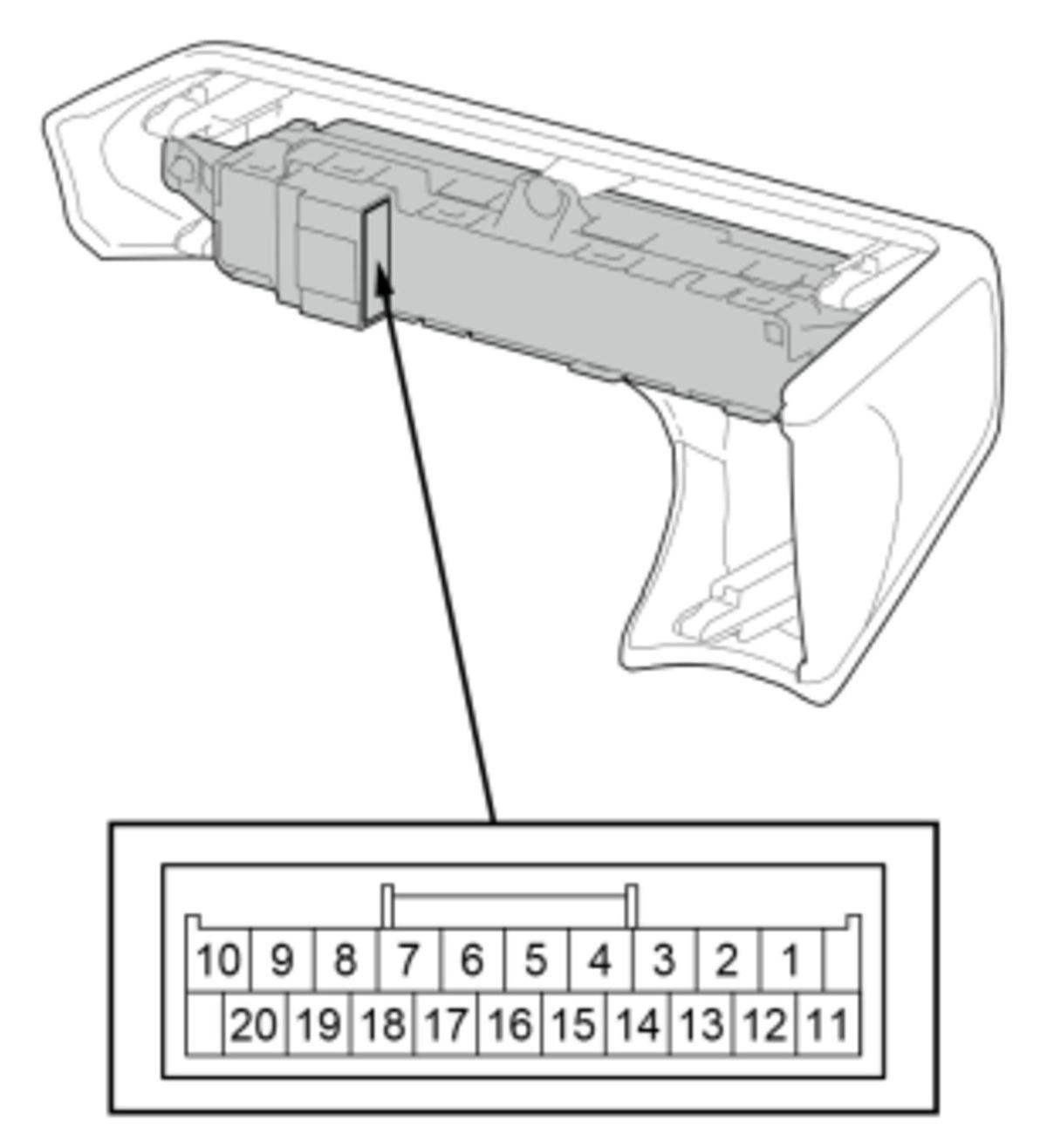

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

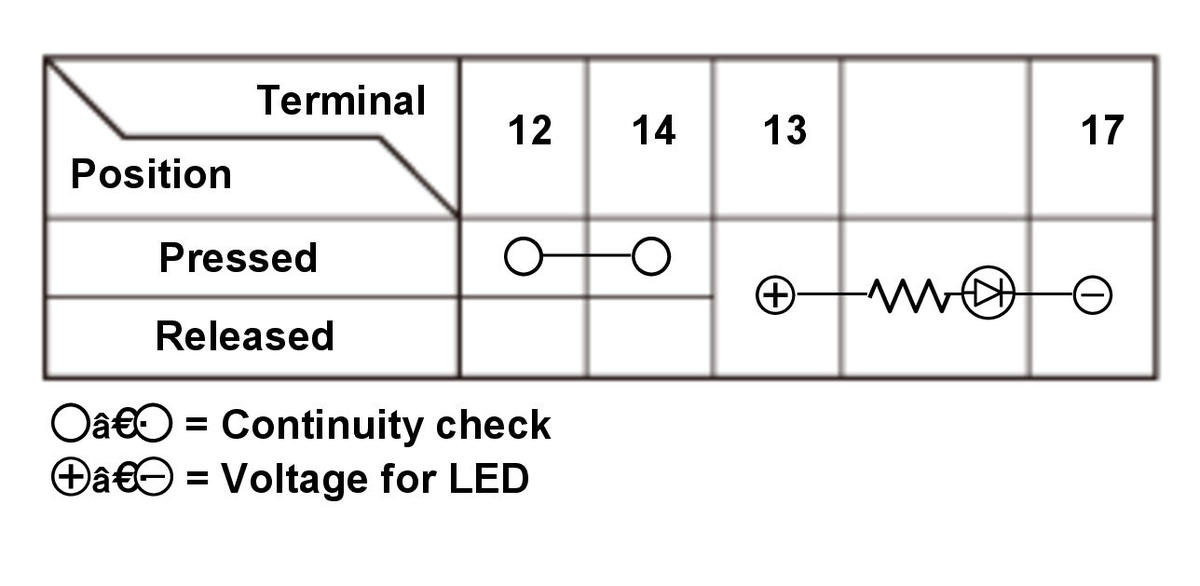

   Figure 2 (except without parking and back-up sensor switch and with heated windshield wiper area switch)

   Courtesy of HONDA, U.S.A., INC.

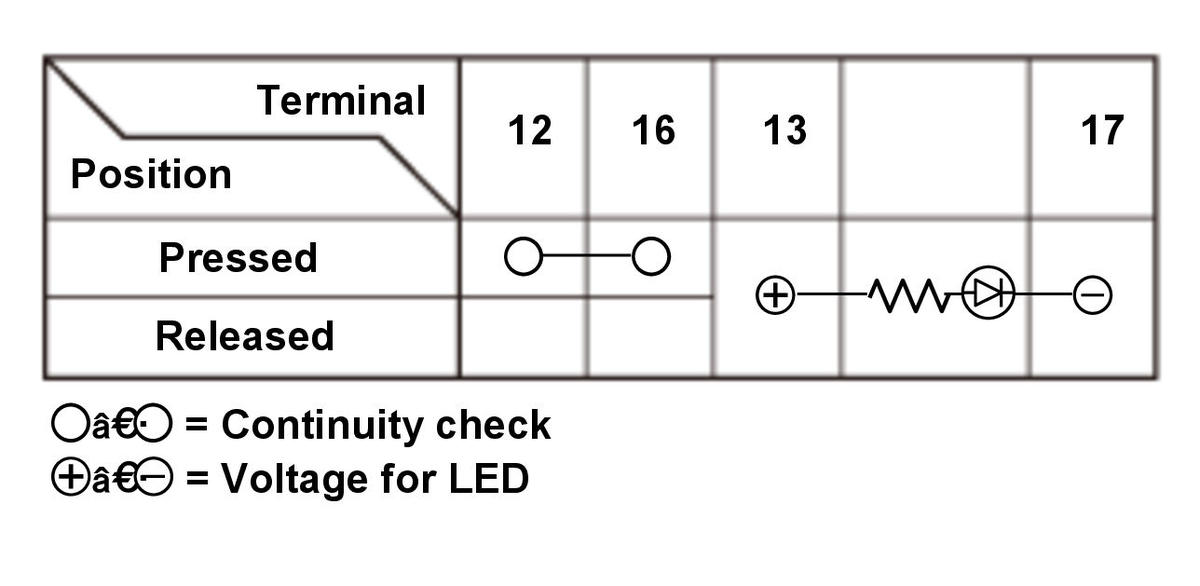

   Figure 3 (without parking and back-up sensor switch and with heated windshield wiper area switch)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, and 3)

     NOTICE:

     • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
     NOTE: The switch location of the VSA OFF switch is different depending on the model.

   Result

   • If the result is not as specified, replace the multi visor switch .
