Repair Procedure

How to use this manual .

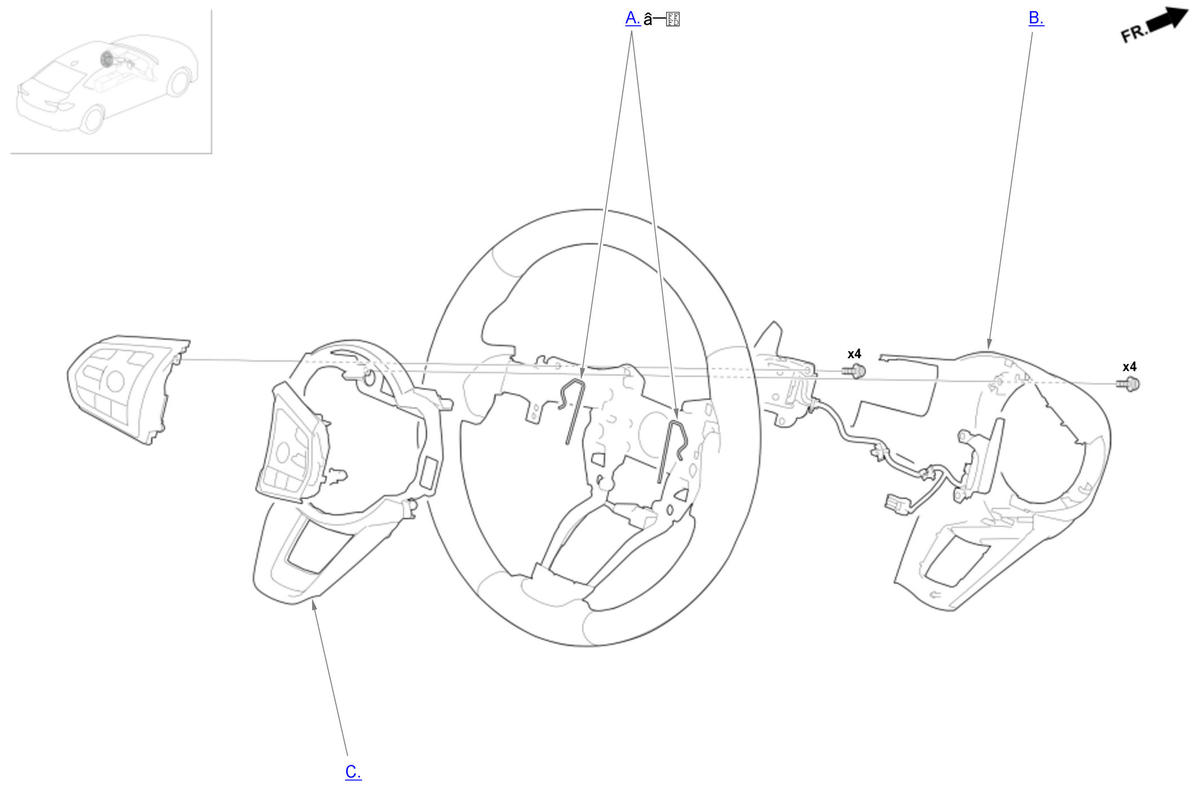

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-
   NOTE:

   If you are replacing the driver's airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

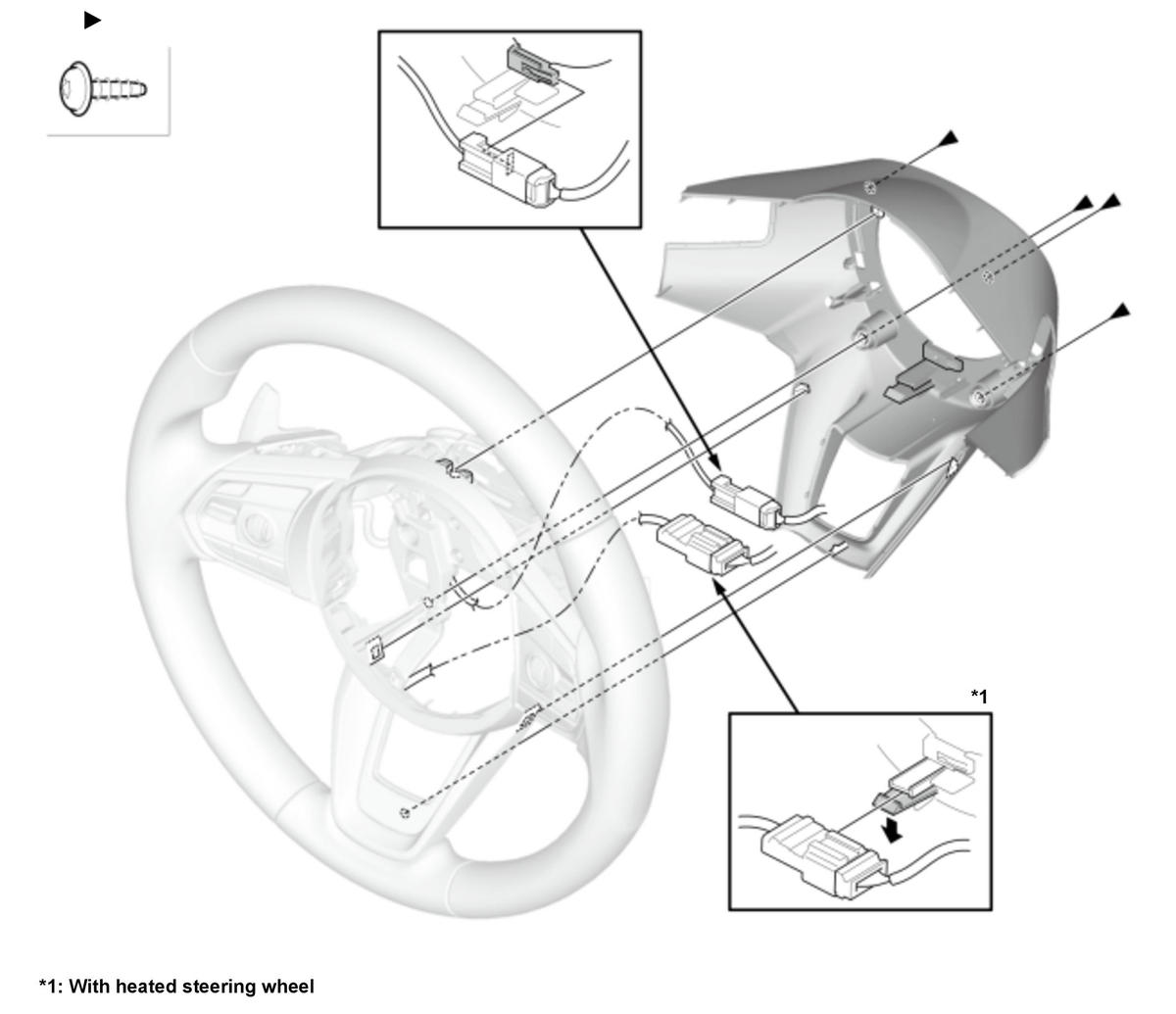

   • Refer to the figure 1.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

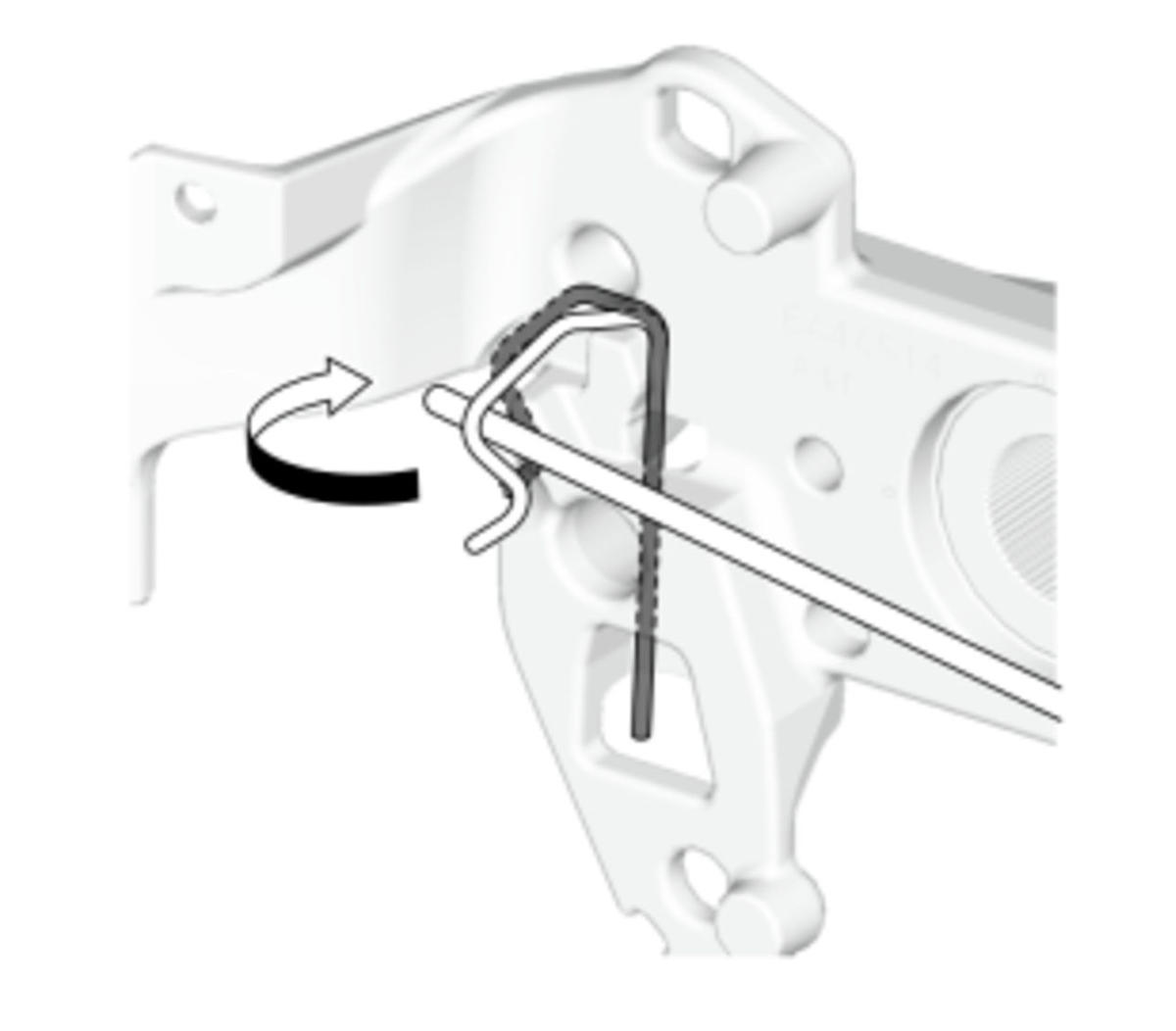

   • Refer to the figure 2.
2. B.-

   Sub-Procedure

   Removal

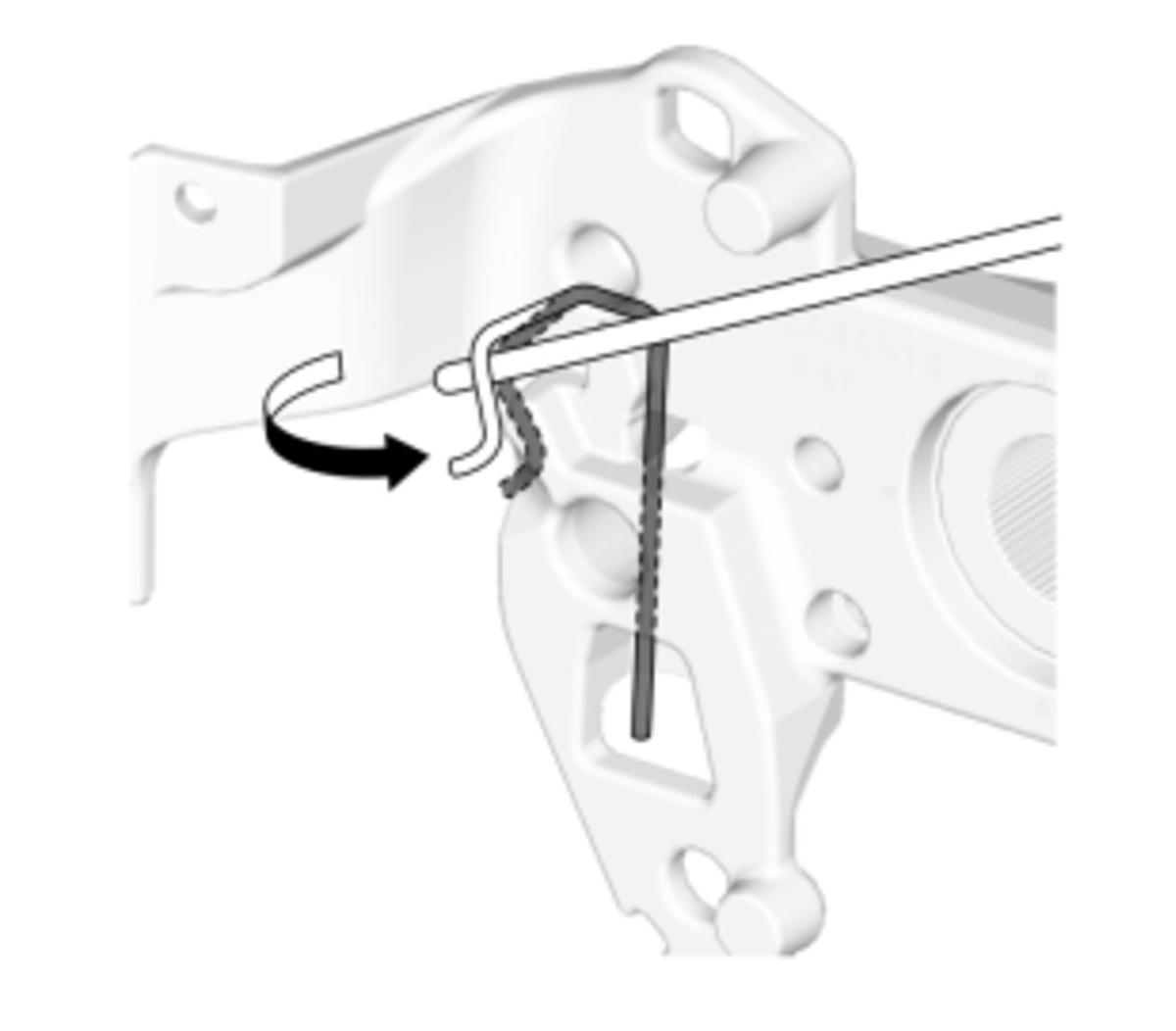

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

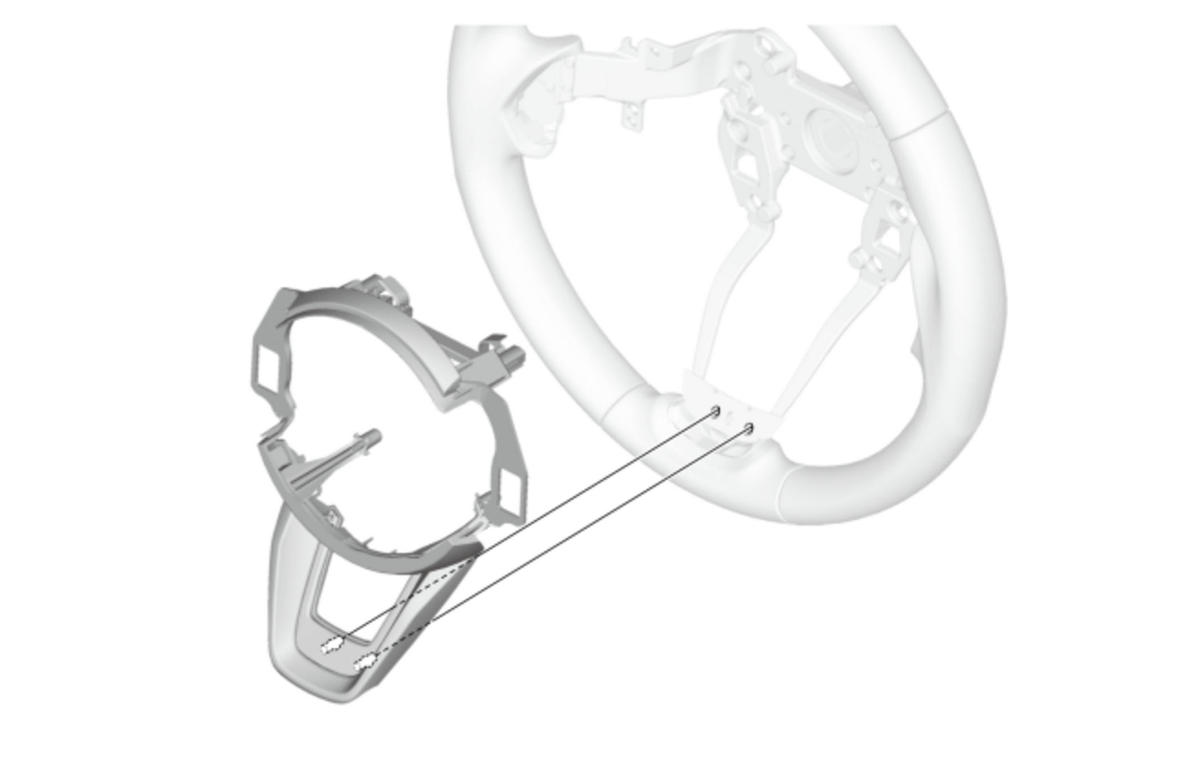

3. C.-

   Courtesy of HONDA, U.S.A., INC.
